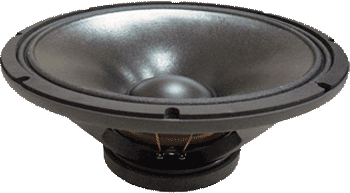

BEYMA 15WR400 - 15" MID-BASS / BASS SPEAKER
|
|
|
BEYMA 15WR400 - 15" MID-BASS / BASS SPEAKER |
|
THE BEYMA 15WR400 HAS SMOOTH MIDS & DEEP RICH TIGHT BASS WITH 4OO WATTS AES POWER HANDLING! |
|
|
|
NEW BEYMA 15WR400 |
|
4 ohms
Item Price: $249.95 |
|
|
8 ohms
Item Price: $249.95 |
|
|
16 ohms
Item Price: $249.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4, 8
& 16 ohms |
|
AES
Power Rating |
400
Watts |
| Program Power |
800
Watts |
|
Frequency
Response |
35Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | 2.45-5.25 ft3 / 70-150 Liters |
| Voice Coil Length | 16 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57"
/ 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.76" / 349.5mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
6.3" / 160mm |
| Net Weight | 13.4 lb. / 6.1 kg. |
| Shipping Weight | 15.96 lb. / 7.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 36 Hz |
|
Impedance
(Re) |
5.5 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.2 |
| Electrical Factor(Qes) | .32 |
| Total Q (Qts) | .30 |
| Comp. Equivalent Vol. (Vas) | 7.91 ft3 / 224 Liters |
| Voice Coil Overhang (Xmax) | 6.3mm |
| Diaphragm Mass (Mms) | 91 Grams |
| Effective Surface Area (Sd) | .088 m2 |
| Reference Efficiency | 3.4% |
| BL Factor | 19.2 T-M |
| Displacement Volume | 555 cm3 |
|

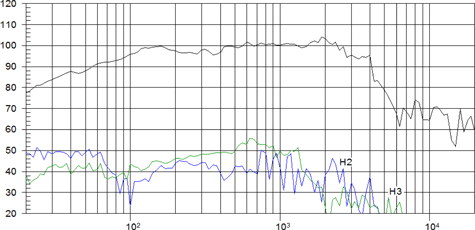

Low Frequency Response & Distortion Graph |
|
 |
|

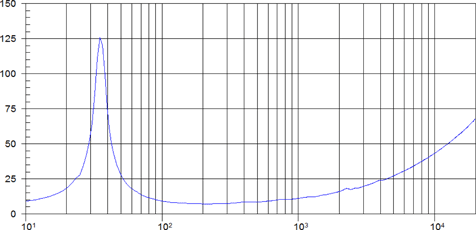

| Impedance Graph | |
 |
|

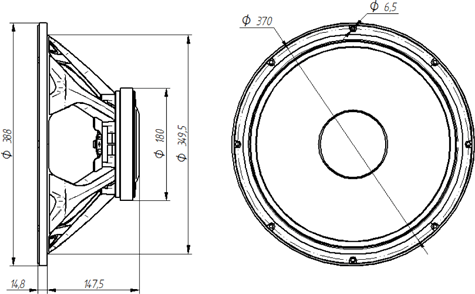

| Mounting Dimensions | |
 |
|
