BEYMA 15MC700 - POWERFUL 15" MID-BASS / BASS SPEAKER
|
|
|
BEYMA 15MC700 - POWERFUL 15" MID-BASS / BASS SPEAKER |
|
THE BEYMA 15MC700 IS A POWERFUL 15 INCH SPEAKER FOR BASS GUITAR AND PA SPEAKER SYSTEMS! |
|
|
|
BEYMA 15MC700 |
|
Item Price: $279.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700 Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
45Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
3" /
76.2mm |
| Voice Coil Length | 23mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 40 mm |
|
Mounting Information |
|
|
Overall Diameter |
15.27" / 388mm |
| Bolt Circle Diameter | 14.56" / 370mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 13.76" / 349.5mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.89" / 175mm |
|
Net
Weight |
16.5 lb. / 7.5 kg. |
| Shipping Weight | 18.7 lb. / 8.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 44 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 5.3 |
| Electrical Factor (Qes) | .4 |
| Total Q (Qts) | .37 |
| Comp. Equivalent Vol. (Vas) | 5.23 ft3 / 148 Liters |
| Voice Coil Overhang (Xmax) | 9.8 mm |
| Moving Mass (Mms) | 94 Grams |
| BL Factor | 18.8 N/A |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 3.1% |
| Displacement Volume (Vd) | 880 cm3 |
|
Frequency Response & Impedance Curve |
|
|
|
|
|

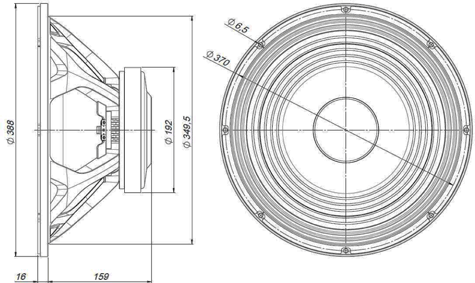

MOUNTING INFORMATION |
|
|
|
|
