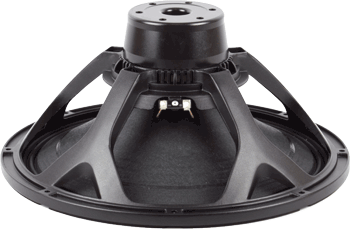

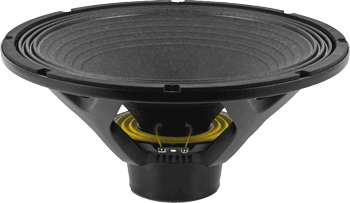

BEYMA 15MC700NdND - POWERFUL 15" MIDRANGE / MID-BASS SPEAKER
|
|
|
BEYMA 15MC700NdND - POWERFUL 15" MIDRANGE / MID-BASS SPEAKER |
|
THE BEYMA 15MC700NdND IS A POWERFUL 15 INCH SPEAKER FOR BASS GUITAR AND PA SPEAKER SYSTEMS! |
|
|
|
BEYMA 15MC700NdNd |
|
Item Price: $380.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700 Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3" /
76.2mm |
| Voice Coil Length | 18mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 48 mm |
|
Mounting Information |
|
|
Overall Diameter |
15.27" / 388mm |
| Bolt Circle Diameter | 14.56" / 370mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 13.76" / 349.5mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
6.89" / 175mm |
|
Net
Weight |
9.2 lb. / 4.2 kg. |
| Shipping Weight | 11.5 lb. / 5.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 49 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .8 mH |
| Mechanical Q (Qms) | 3.6 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .31 |
| Comp. Equivalent Vol. (Vas) | 3.7 cu. ft3 / 105 Liters |
| Voice Coil Overhang (Xmax) | 7 mm |
| Moving Mass (Mms) | 107 Grams |
| BL Factor | 22.6 N/A |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 3.7% |
| Displacement Volume (Vd) | 616 cm3 |
|

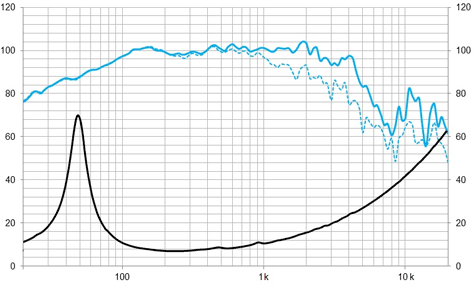

Frequency Response & Impedance Curve |
|
|
|
|
|

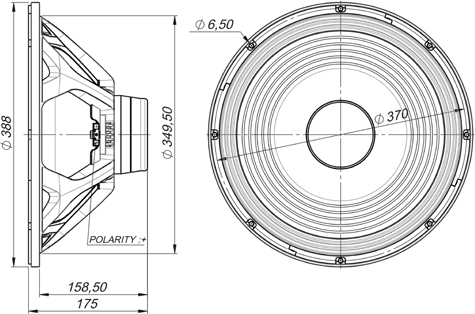

Mounting Information |
|
|
|
|
