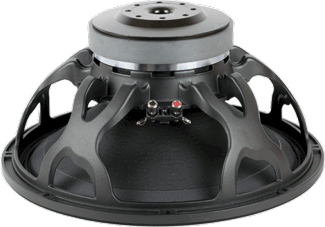

BEYMA 18LEX1000FE - 18" HIGH POWER WOOFER
|
|
|
BEYMA 18LEX1000FE - 18" HIGH POWER WOOFER |
|
BEYMA 18LEX1000FE HAS A 3.5" DUO DOUBLE LAYER INNER/OUTER COPPER VOICE COIL THAT HANDLES 2,000 WATTS PROGRAM! |
|
|
|
BEYMA 18LEX1000FE |
|
8 Ohms
Item Price: $439.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
35Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
3.5"
/ 89mm |
| Voice Coil Length | 27 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 51 mm |
| BL Factor | 23.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
18.19" / 462mm |
| Bolt Circle Diameter | 17.36" / 441mm |
| Baffle Cutout Diameter- | |
| - Rear Mount | 16.8" / 426mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 8.8" / 224mm |
|
Net
Weight |
25.7lb. / 11.7 kg. |
|
Shipping
Weight |
28.6 lb. / 13 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Duo Double Layer In/Outer Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 34 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.9 mH |
| Mechanical Q (Qms) | 7.3 |
| Electrical Factor (Qes) | .39 |
| Total Q (Qts) | .38 |
| Comp. Equivelant Vol. (Vas) | 8.83ft3 / 250 Liters |
| Voice Coil Overhang (Xmax) | 11 mm |
| Moving Mass (Mms) | 196 Grams |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Reference Efficiency | 2.4% |
| Displacement Volume (Vd) | 1380 cm3 |

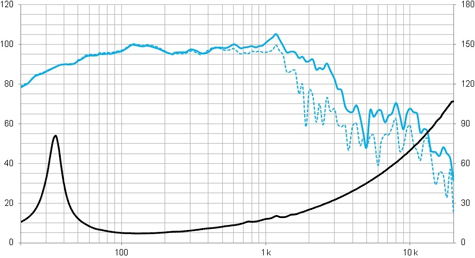

| Frequency Response & Free Air Impedance Curve | |
 |
|
| Mounting Dimensions | |
 |
|
