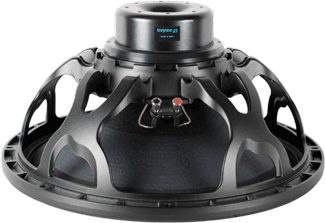

BEYMA 18LEX1200ND - 18" HIGH POWER NEO WOOFER
|
|
|
BEYMA 18LEX1200ND - 18" HIGH POWER NEO WOOFER |
|
BEYMA 18LEX1200NE HAS A 4" DUO DOUBLE LAYER INNER/OUTER COPPER VOICE COIL & HANDLES 2,400 WATTS PROGRAM! |
|
|
|
BEYMA 18LEX1200ND |
|
8 Ohms
Item Price: $479.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,200
Watts |
| Program Power |
2,400
Watts |
|
Frequency
Response |
40Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
| Voice Coil Length | 27 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 48 mm |
| BL Factor | 26.4 N/A |
| Recommended Enclosure Size (ported) | 6.07 cu. ft. / 172 Liters |
|
Mounting Information |
|
|
Overall Diameter |
18.19" / 462mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter | 16.33" / 415mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 8.85" / 225mm |
|
Net
Weight |
19.8lb. / 9 kg. |
|
Shipping
Weight |
22.5 lb. / 10.2 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Duo Double Layer In/Outer Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 36 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 10.9 |
| Electrical Factor (Qes) | .35 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | 7.73 ft3 / 219 Liters |
| Voice Coil Overhang (Xmax) | 11 mm |
| Moving Mass (Mms) | 200 Grams |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Reference Efficiency | 2.8% |
| Displacement Volume (Vd) | 1300 cm3 |

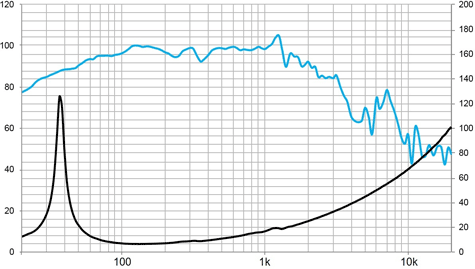

| Frequency Response & Free Air Impedance Curve | |
 |
|

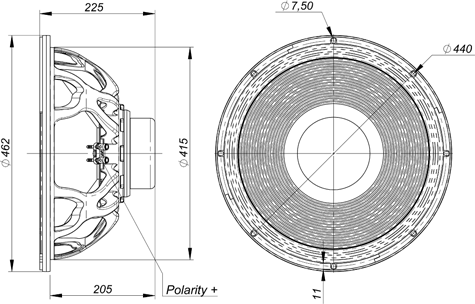

| Mounting Dimensions | |
 |
|
