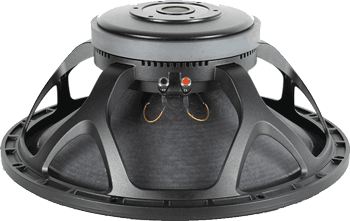

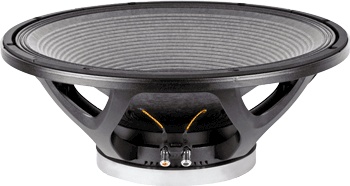

BEYMA 18LX60V2/S - 18" HIGH POWER WOOFER
|
|
|
BEYMA 18LX60V2/S - 18" HIGH POWER WOOFER |
|
BEYMA 18LX60V2/S NEW FRAME IS A LONG EXCURSION BASS WOOFER WITH AN EXTENDED XMAX OF 8MM! |
|
|
|
BEYMA 18LX60V2/S |
|
Item Price: $429.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
25Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Recom. Enclosure Volume | 2.8-8.8 ft3 / 80-250 Liters |
| Voice Coil Length | 20 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 47 mm |
| BL Factor | 21.8 N/A |
|
Mounting Information |
|
|
Overall Diameter |
18.2" / 461mm |
| Bolt Circle Diameter | 17.24" / 438mm |
| Baffle Cutout Diameter | 16.34" / 415mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.6" / 193mm |
|
Net
Weight |
25.8 lb. / 11.73 kg. |
| Shipping Weight | 27.5 lb. / 12.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.1 ohms |
| Coil Inductance (Le) | 2.1 mH |
| Mechanical Q (Qms) | 15.7 |
| Electrical Factor (Qes) | .5 |
| Total Q (Qts) | .48 |
| Comp. Equivalent Vol. (Vas) | 8.33 ft3 / 236 Liters |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Surface Area of Cone (Sd)m2 | 0.1320m2 |
| Moving Mass (Mms) | 215 Grams |
| Mechanical Resistance (Rms) | 3.1kg/s |
| Mechanical Compliance (Cms) | 94.5 μm/N |
| Reference Efficiency | 1.91% |
| Displacement Volume (Vd) | 1056 cm3 |
|

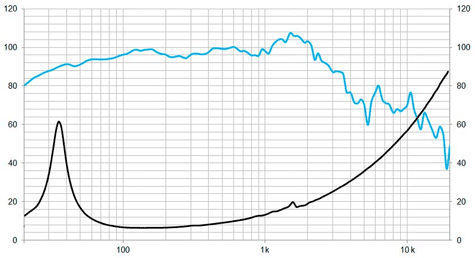

Frequency Response & Impedance Curve |
|
 |
|
|
Mounting Dimensions |
|
 |
|
