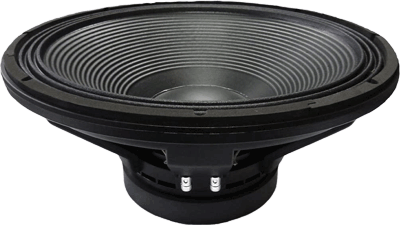

BEYMA 18P1000FeV2 - 18" HIGH POWER WOOFER
|
|
|
BEYMA 18P1000FeV2 - 18" HIGH POWER WOOFER |
|
STRONG DEEP BASS DOWN TO 30HZ W/ A DOUBLE SPIDER & LARGE 4" COPPER VOICE COIL THAT HELPS DELIVER A ROCK SOLID PERFORMANCE! |
|
|
|
4 Ohm Version
Item Price: $425.95 |
|
8 Ohms
Item Price: $425.95 |
|
| WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
4 or 8 ohms |
|
AES
Power Rating |
1,200 Watts |
| Program Power | 2,400 Watts |
| Frequency Response | 30Hz - 2.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
| Voice Coil Diameter | 4" / 100mm |
| Recom. Enclosure Volume | 3.18-7.0 ft3 / 90-200 Liters |
| Voice Coil Length | 21 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 52 mm |
| BL Factor | 26.8 N/A |
| Magnetic Assembly Weight | 25.1 lb. / 11.4 kg. |
|
Mounting Information |
|
| Overall Diameter | 18.2" / 462mm |
| Bolt Circle Diameter | 17.3" / 438mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 16.3" / 413mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.46 ft3 / 13 Liters |
| Overall Depth | 8.4" / 215mm |
| Net Weight | 30.4 lb. / 13.8 kg. |
| Shipping Weight | 33.7 lb. / 15.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Specially Treated Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Ribbon |
| Spider | Nomex/Polycotton Dual Spider |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 33 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 1.75 mH |
| Mechanical Q (Qms) | 10.5 |
| Electrical Factor (Qes) | .33 |
| Total Q (Qts) | .32 |
| Comp. Equivalent Vol. (Vas) | 8.12 ft3 / 230 Liters |
| Voice Coil Overhang (Xmax) | 8 mm |
| Surface Area of Cone (Sd)m2 | 0.1250m2 |
| Diaphragm Mass (Mms) | 221 Grams |
| Reference Efficiency | 2.4% |
| Displacement Volume (Vd) | 1000 cm3 |

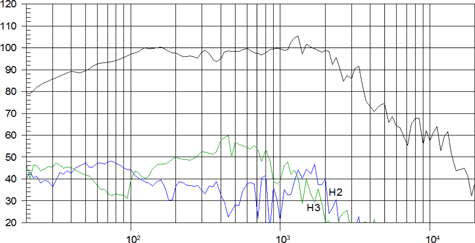

| Frequency Response & Distortion Curves | |
 |
|
|

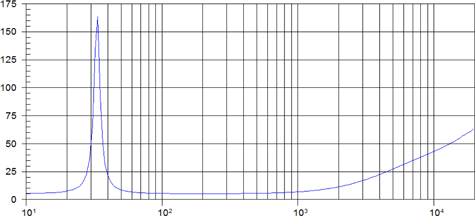

Impedance Graph |
|
 |
|

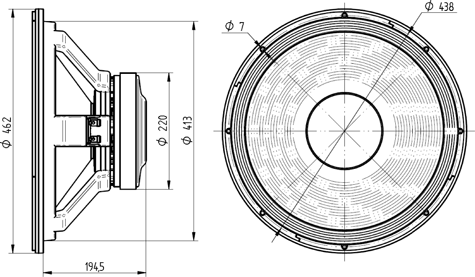

| Mounting Dimensions | |
|
|
|
