• NEW BEYMA 18P1000FeV2/S 18" SPEAKER CAN WITHSTAND A REAL HIGH POWER OF 1,200 WATTS AES STANDARD & 2,400 WATTS PROGRAM POWER
• FEATURES A NEW FRAME STYLE FOR INCREASED STABILITY, LARGE 4" VOICE COIL, & HIGH BL FACTOR OF 26.8T FOR VERY TIGHT BASS
• WATERPROOF FRONT & BACK CONE, CONEX DOUBLE SPIDER, MMS TECHNOLOGY & HIGH TEMPERATURE MAGNET WIRE
• LOW FS OF 33HZ, XMAX OF 8MM & TRIPLE ROLL SURROUND
• SPECIALLY TREATED CONE WILL NOT TEAR IN A FOLDED HORN CABINET & CAN WITHSTAND SEVERE OUTDOOR CONDITIONS
• FOR THE HIGHEST POWER SUBWOOFER APPLICATIONS INCLUDING CONCERT, ARENA, THEATRES, THEME PARK WATER RIDES, SOUND REINFORCEMENT, ETC.
• AVAILABLE IN 4 OR 8 OHMS

STRONG DEEP BASS DOWN TO 30HZ W/ A DOUBLE SPIDER & LARGE 4" COPPER VOICE COIL THAT HELPS DELIVER A ROCK SOLID PERFORMANCE!
	4 Ohm Version Item Price: $413.95
	8 Ohms Item Price: $413.95
WOOFER MODEL	18P1000FeV2/S
Specifications
Nominal Basket Diameter	18" / 460mm
Impedance	4 or 8 ohms
AES Power Rating	1,200 Watts
Program Power	2,400 Watts
Frequency Response	30Hz - 2.0kHz
Sensitivity (1W/1m)	98dB
Voice Coil Diameter	4" / 100mm
Recom. Enclosure Volume	3.18-7.0 ft3  /  90-200 Liters
Voice Coil Length	21 mm
Air Gap Height	12 mm
X Damage (peak to peak)	52 mm
BL Factor	26.8 N/A
Magnetic Assembly Weight	25.1 lb. / 11.4 kg.
Mounting Information
Overall Diameter	18.2" / 462mm
Bolt Circle Diameter	17.3" / 438mm
Baffle Cutout Diameter-
- Front Mount	16.3" / 413mm
No. Of Mounting Holes	8
Volume Displaced By Driver	0.46 ft3  /  13 Liters
Overall Depth	8.3" / 212mm
Net Weight	29.8 lb. / 13.5 kg.
Shipping Weight	32.6 lb. / 15.8 kg.
Materials
Basket	Die Cast Aluminum
Cone	Specially Treated Paper
Surround	Treated Cloth
Surround Shape	Triple Roll
Voice Coil	Edgewound Copper Ribbon
Spider	Nomex/Polycotton Dual Spider
Magnet	High Currie Temperature Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	33 Hz
Impedance (Re)	5.2 ohms
Coil Inductance (Le)	1.75 mH
Mechanical Q (Qms)	10.5
Electrical Factor (Qes)	.33
Total Q (Qts)	.32
Comp. Equivalent Vol. (Vas)	8.12 ft3 / 230 Liters
Voice Coil Overhang (Xmax)	8 mm
Surface Area of Cone (Sd)m2	0.1250m2
Diaphragm Mass (Mms)	221 Grams
Reference Efficiency	2.4%
Displacement Volume (Vd)	1000 cm3

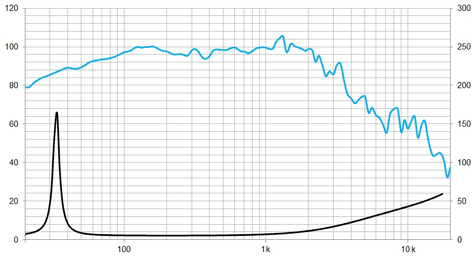

Frequency Response & Impedance Graph

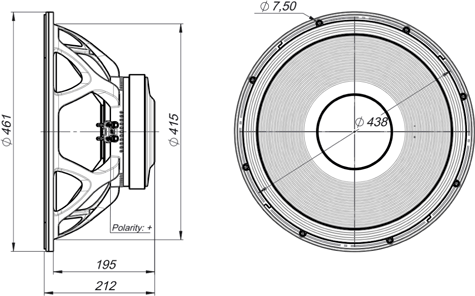

Mounting Dimensions
