BEYMA 18WRS600 - 18" WOOFER
|
|
|
BEYMA 18WRS600 - 18" WOOFER |
|
THE BEYMA 18WRS600 HAS A DEEP TIGHT BASS DOWN TO 35HZ WITH A WATERPROOF CONE FOR OUTDOOR USE |
|
|
|
Item Price: $289.95 |
| WOOFER MODEL | 18WRS600 |
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
600 Watts |
| Program Power | 1,200 Watts |
| Frequency Response | 35Hz - 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
| Voice Coil Diameter | 3" / 176.2mm |
| Voice Coil Length | 21.5 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 53 mm |
| BL Factor | 19 N/A |
|
Mounting Information |
|
| Overall Diameter | 18.00" / 457mm |
| Bolt Circle Diameter | 17.22" / 437.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 16.73" / 425mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.46 ft3 / 13 Liters |
| Overall Depth | 7.99" / 203mm |
| Net Weight | 19.2 lb. / 8.7 kg. |
| Shipping Weight | 22 lb. / 10 kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.5 mH |
| Mechanical Q (Qms) | 4.8 |
| Electrical Factor (Qes) | .44 |
| Total Q (Qts) | .4 |
| Comp. Equivalent Vol. (Vas) | 13.14 ft3 / 372 Liters |
| Voice Coil Overhang (Xmax) | 8.5 mm |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Diaphragm Mass (Mms) | 147 Grams |
| Reference Efficiency | 2.7% |
| Displacement Volume (Vd) | 1130 cm3 |

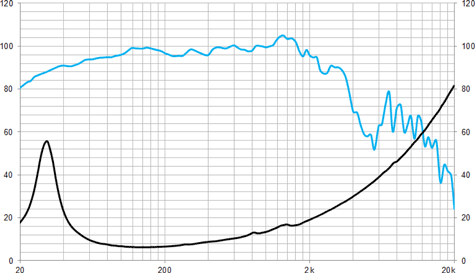

| Frequency Response & Impedance Curve | |
 |
|
|

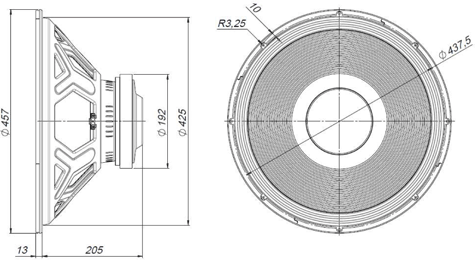

Mounting Dimensions |
|
|
|
|
