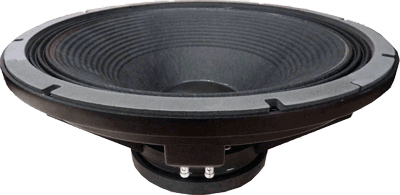

BEYMA 21PW1400Fe - 21" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 21PW1400Fe - 21" EXTREME HIGH POWER WOOFER |
|
EXTREME HIGH POWER OF 2,800 WATTS PROGRAM, LOW FS OF 30HZ W/ A 10.0MM XMAX! |
|
|
|
BEYMA 21PW1400Fe |
|
4 Ohm Version
Item Price: $649.95 |
|
|
8 Ohm Version
Item Price: $649.95 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
21" |
|
Impedance |
4 or 8
ohms |
|
AES
Power Rating |
1,400
Watts |
| Program Power |
2,800
Watts |
|
Frequency
Response |
25Hz
- 1.8kHz |
|
Sensitivity
(1W/1m) |
98.5dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 3.5-8.75 ft3 / 100-250 Liters |
| Voice Coil Length | 25 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 55 mm |
| BL Factor | 28.2 N/A |
| Magnetic Assembly Weight | 31.8 lb. / 14.4 kg. |
|
Mounting Information |
|
|
Overall Diameter |
21.65" / 550mm |
| Bolt Circle Diameter | 20.71" / 526mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 19.45" / 494mm |
| - Rear Mount | 20.12" / 511mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.71 ft3 / 20 Liters |
| Overall Depth | 9.53" / 242mm |
|
Net
Weight |
43.87 lb. / 19.9 kg. |
|
Shipping Weight |
50.0 lb. / 22.6 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 30 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 7.44 |
| Electrical Factor (Qes) | .36 |
| Total Q (Qts) | .34 |
| Comp. Equivalent Vol. (Vas) | 14.18 ft3 / 401.5 Liters |
| Voice Coil Overhang (Xmax) | 10.0 mm |
| Moving Mass (Mms) | 298 Grams |
| Surface Area of Cone (Sd)m2 | 0.1734m2 |
| Reference Efficiency | 2.83% |
| Displacement Volume (Vd) | 1729 cm3 |

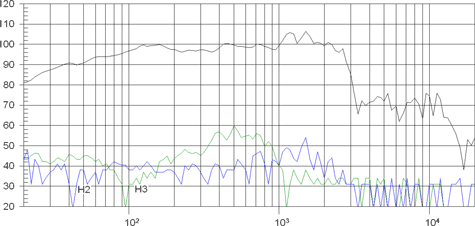

| Frequency Response & Distortion Curves | |
 |
|

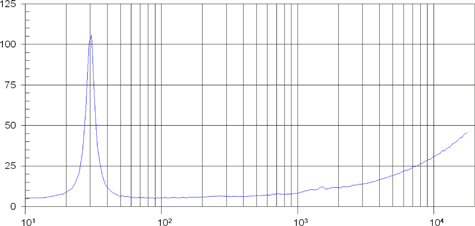

| Free Air Impedance Curve | |
 |
|

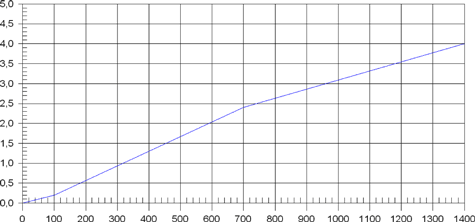

| Power Compression Loss | |
 |
|

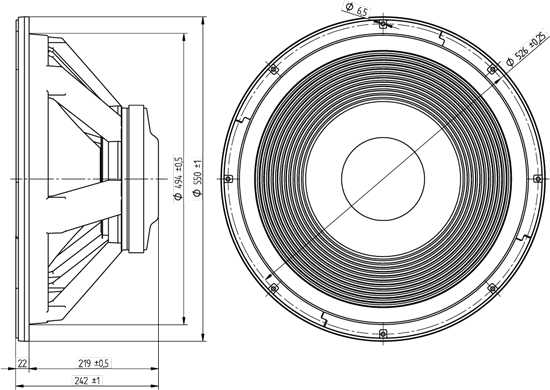

| Drawing | |
 |
|
