BEYMA 21LEX1600ND - 21" LIGHTWEIGHT EXTREME POWER WOOFER
|
|
|
BEYMA 21LEX1600ND - 21" LIGHTWEIGHT EXTREME POWER WOOFER |
|
BEYMA 21LEX1600ND 21" SUBWOOFER SPEAKER HAS A DEEP LOW TIGHT BASS THAT IS POWERFUL! |
|
|
|
BEYMA 21LEX1600ND |
|
Item Price: $796.50 |
|
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
21" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
1,600
Watts |
| Program Power |
3,200
Watts |
|
Frequency
Response |
30Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 5.3 ft3 / 150 Liters |
| Voice Coil Length | 34.5 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 65 mm |
|
Mounting Information |
|
|
Overall Diameter |
21.5" / 545mm |
| Bolt Circle Diameter | 20.6" / 522.5mm |
| Baffle Cutout Diameter- | 19.4" / 492mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.4 ft3 / 11.5 Liters |
| Overall Depth | 10.6" / 268mm |
|
Net
Weight |
26 lb. / 11.8 kg. |
|
Shipping Weight |
31.5 lb. / 14.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Inner/Outer Copper Wire |
| Voice Layers | Four |
| Demodulation Ring | Aluminum |
| Spider | Double Silicone |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 30 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 4.7 mH |
| Mechanical Q (Qms) | 8.6 |
| Electrical Factor (Qes) | .3 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 10.77 ft3 / 305 Liters |
| Voice Coil Overhang (Xmax) | 14.0 mm |
| Moving Mass (Mms) | 393 Grams |
| Surface Area of Cone (Sd)m2 | 0.1734m2 |
| BL Factor | 36.6 N/A |
| Reference Efficiency | 2.7% |
| Displacement Volume (Vd) | 2428 cm3 |

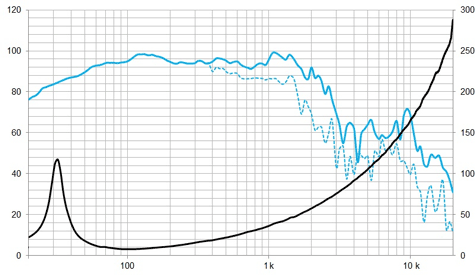

| Frequency Response & Free Air Impedance Curve | |
 |
|

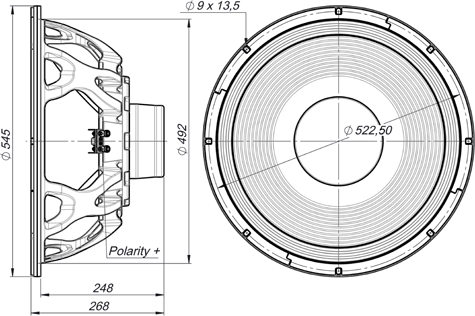

| Drawing | |
 |
|
