BEYMA 3FR30 - 3" FULL RANGE SPEAKER
|
|
|
BEYMA 3FR30 - 3" FULL RANGE SPEAKER |
|
THE BEYMA 3FR30 3" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 160HZ TO 20KHZ! |
|
|
|
BEYMA 3FR30 |
|
Item Price: $25.50 |
|
|
WOOFER MODEL - 3FR30 |
|
|
Specifications |
|
|
Nominal Basket Diameter |
3" / 77mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
30 Watts |
| Program Power | 60 Watts |
|
Frequency Response |
160Hz - 20KHz |
|
Sensitivity (1W/1m) |
91dB |
|
Voice Coil Diameter |
.8" / 20.3mm |
| Voice Coil Length | 10.5mm |
| Air Gap Height | 3mm |
| BL Factor | 4.9 N/A |
| Mounting Information | |
| Overall Diameter | 3.68" / 93.5mm |
| Bolt Circle Diameter | 3.35" / 85mm |
| Baffle Cutout Diameter | 2.98" / 75.9mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 1.81" / 46mm |
| Net Weight | 1.25 lb. / .57 kg. |
| Shipping Weight | 1.54 lb. / .7 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 160 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | .25 mH |
| Mechanical Q (Qms) | 8 |
| Electrical Factor (Qes) | .52 |
| Total Q (Qts) | .49 |
| Comp. Equivalent Vol. (Vas) | .024 ft3 / .67 Liters |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Moving Mass (Mms) | 2 Grams |
| Surface Area of Cone (Sd) | .0022m2 |
| Reference Efficiency | .5% |
| Displacement Volume (Vd) | 13.5 cm3 |
|

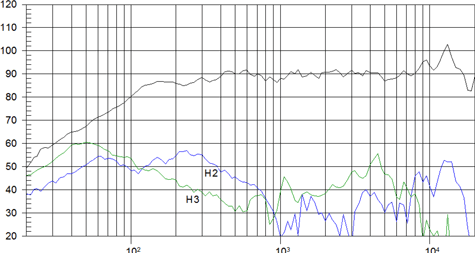

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|

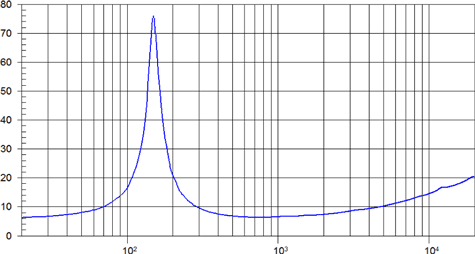

IMPEDANCE CURVE |
|
 |
|

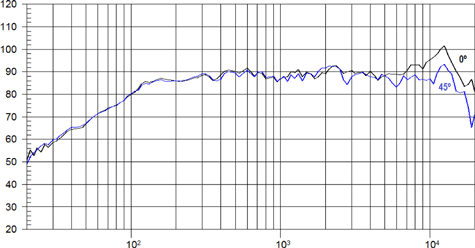

| OFF AXIS FREQUENCY RESPPONSE | |
 |
|

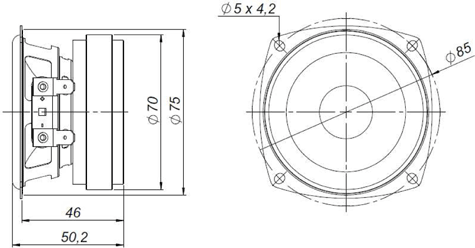

| MOUNTING INFORMATION | |
 |
|
