BEYMA 3FR30V2 - 3" FULL RANGE SPEAKER
|
|
|
BEYMA 3FR30V2 - 3" FULL RANGE SPEAKER |
|
THE BEYMA 3FR30V2 3" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 135HZ TO 20KHZ! |
|
|
|
BEYMA 3FR30V2 |
|
Item Price: $25.50 |
|
|
WOOFER MODEL - 3FR30V2 |
|
|
Specifications |
|
|
Nominal Basket Diameter |
3" / 77mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
30 Watts |
| Program Power | 60 Watts |
|
Frequency Response |
135Hz - 20KHz |
|
Sensitivity (1W/1m) |
90.5dB |
|
Voice Coil Diameter |
.8" / 20.3mm |
| Winding Length | 6mm |
| Air Gap Height | 5mm |
| BL Factor | 4.5 N/A |
| Mounting Information | |
| Overall Diameter | 3.68" / 93.5mm |
| Bolt Circle Diameter | 3.35" / 85mm |
| Baffle Cutout Diameter | 2.98" / 75.9mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 1.81" / 46mm |
| Net Weight | 1.25 lb. / .57 kg. |
| Shipping Weight | 1.54 lb. / .7 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 133 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | .16 mH |
| Mechanical Q (Qms) | 5.8 |
| Electrical Factor (Qes) | .56 |
| Total Q (Qts) | .51 |
| Comp. Equivalent Vol. (Vas) | .028 ft3 / 1.0 Liters |
| Voice Coil Overhang (Xmax) | 2.0mm |
| Moving Mass (Mms) | 2.3 Grams |
| Surface Area of Cone (Sd) | .003m2 |
| Reference Efficiency | .4% |
| Displacement Volume (Vd) | 5 cm3 |
|

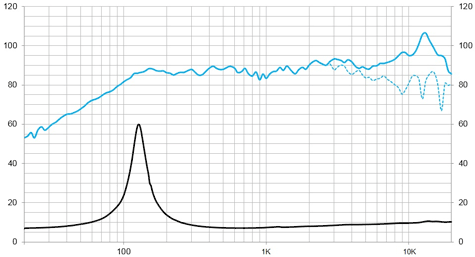

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|

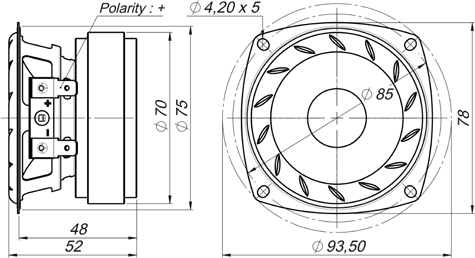

| MOUNTING INFORMATION | |
 |
|
