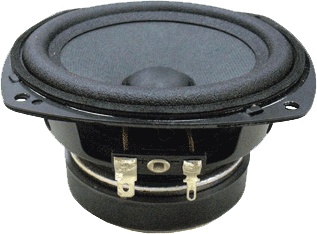

BEYMA 4FR40 - 4" FULL RANGE SPEAKER
|
|
|
BEYMA 4FR40 - 4" FULL RANGE SPEAKER |
|
THE BEYMA 4FR40 4" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 100HZ TO 20KHZ! |
|
|
|
BEYMA 4FR40 |
|
Item Price: $29.95 |
|
|
WOOFER MODEL - 4FR40 |
|
|
Specifications |
|
|
Nominal Basket Diameter |
4" / 100mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
40 Watts |
| Program Power | 80 Watts |
|
Frequency Response |
100Hz - 20KHz |
|
Sensitivity (1W/1m) |
87dB |
|
Voice Coil Diameter |
.8" / 20.3mm |
| Voice Coil Length | 7.7mm |
| Air Gap Height | 5mm |
| BL Factor | 4.2 N/A |
| Mounting Information | |
| Overall Diameter | 4.65" / 118.2mm |
| Bolt Circle Diameter | 4.26" / 108.2mm |
| Baffle Cutout Diameter | 3.62" / 92mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 2.36" / 60mm |
| Net Weight | 1.21 lb. / .55 kg. |
| Shipping Weight | 1.65 lb. / .75 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Waterproof Paper |
| Surround | Santoprene |
| Surround Shape | Half Roll |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 92 Hz |
| Impedance (Re) | 6.4 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 11.3 |
| Electrical Factor (Qes) | .96 |
| Total Q (Qts) | .88 |
| Comp. Equivalent Vol. (Vas) | .099 ft3 / 2.8 Liters |
| Voice Coil Overhang (Xmax) | 3.0mm |
| Moving Mass (Mms) | 4.4 Grams |
| Surface Area of Cone (Sd) | .0055m2 |
| Reference Efficiency | .22% |
| Displacement Volume (Vd) | 11 cm3 |
|
FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|
IMPEDANCE CURVE |
|
 |
|
| OFF AXIS FREQUENCY RESPPONSE | |
 |
|
| MOUNTING INFORMATION | |
 |
|
