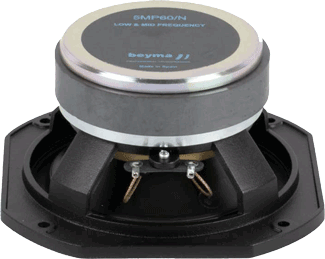

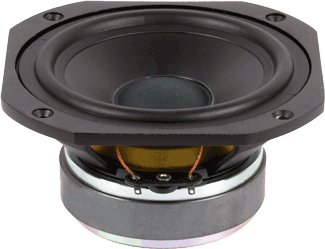

BEYMA 5MP60/N - 5" LOW-MID SPEAKER
|
|
|
BEYMA 5MP60/N - 5" LOW-MID SPEAKER |
|
SMOOTH DEFINED MIDS & BASS FROM THIS 50 WATT RMS 5" SPEAKER! |
|
|
|
Item Price: $65.95 |
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
50
Watts |
| Program Power |
100
Watts |
|
Frequency
Response |
65Hz
- 12.0kHz |
|
Sensitivity
(1W/1m) |
88dB |
|
Voice
Coil Diameter |
1"
/ 25.8mm |
| BL Factor | 6.4 N/A |
| Voice Coil Length | 14 mm |
| Air Gap Height | 6 mm |
| X Damage (peak to peak) | 20 mm |
| Recommended Enclosure Volume | .35 cu. ft. / 8 Liters |
|
Mounting Information |
|
|
Overall Diameter |
5.9"/150mm |
| Outside Flat To Flat | 5.24"/133mm |
| Bolt Circle Diameter |
5.4"
/ 137mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.7" / 120mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | .02 ft3 / .5 Liters |
| Overall Depth | 2.68" / 68mm |
|
Net
Weight |
2.6 lb. / 1.2 kg. |
| Shipping Weight | 2.8 lb. / 1.3 kg. |
|
Materials |
|
| Basket | Die-Cast Aluminum |
| Cone | Polypropylene |
| Surround | Rubber |
| Voice Coil | Copper Wire |
| Demodulation Ring | Copper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 63 Hz |
|
Impedance
(Re) |
5.33 ohms |
| Coil Inductance (Le) | 0.2 mH |
| Mechanical Q (Qms) | 2.3 |
| Electrical Factor(Qes) | .58 |
| Total Q (Qts) | .46 |
| Comp. Equivalent Vol. (Vas) | .2 ft3 / 5.8 Liters |
| Surface Area (Sd) | .0085m2 |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Moving Mass (Mms) | 11 Grams |
| Reference Efficiency | .25% |
| Displacement Volume | 46 cm3 |

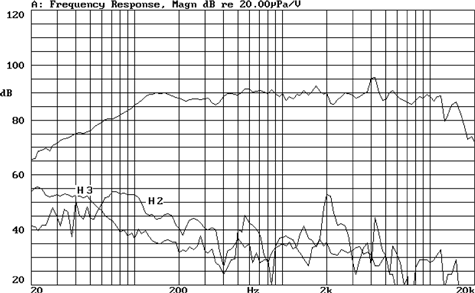

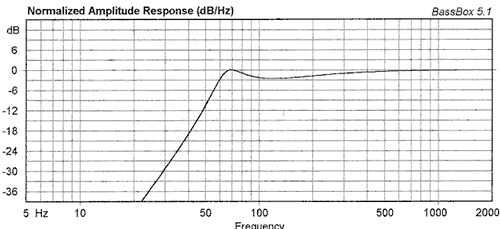

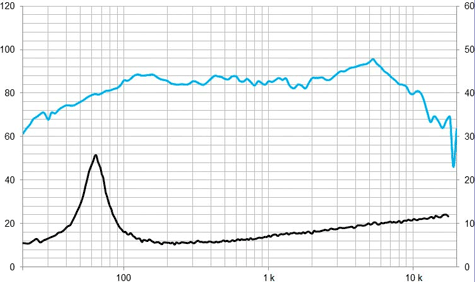

| Frequency Response & Impedance Graph | |
 |
|

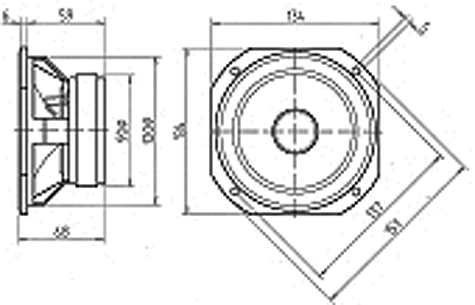

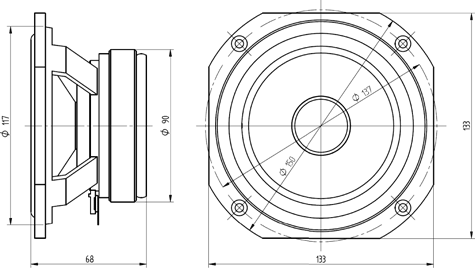

| Mounting Dimensions | |
 |
|
