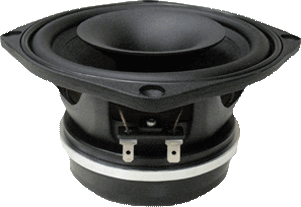

BEYMA 5CX200ND/N - 5" COAXIAL SPEAKER
|
|
|
BEYMA 5CX200ND/N - 5" COAXIAL SPEAKER |
|
THE NEW BEYMA 5CX200ND/N COAXIAL SPEAKER SOUNDS VERY SMOOTH AND HAS AN EXCELLENT OFF AXIS RESPONSE! |
|
|
|
BEYMA 5CX200Nd/N |
|
Item Price: $319.50 |
|
Beyma 5CX200Nd/N High Frequency Diaphragm
Item Price:
$79.95 |
|
|
COAXIAL MODEL |
5CX200Nd/N |
|
Specifications |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
150
Watts |
|
Program
Power |
300
Watts |
|
Frequency
Response |
75Hz
- 20kHz |
|
High Frequency Sensitivity (1W/1m) |
102dB |
| Low Frequency Sensitivity (1W/1m) | 92.5dB |
|
Voice
Coil Diameter |
1.5"
/ 38.5mm |
| Recom. Enclosure Volume | .35-.71 ft3 / 10-20 Liters |
| Voice Coil Length | 14 mm |
| Air Gap Height | 6 mm |
| X Damage (peak to peak) | 19 mm |
| BL Factor | 7.32 N/A |
|
Mounting Information |
|
|
Overall Diameter |
6.1"
/ 155mm |
| Bolt Circle Diameter |
5.57"
/ 141.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.69" / 119.2mm |
| - Rear Mount | 4.69" / 119.2mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .5 Liters |
|
Overall
Depth |
3.74"
/ 94.9mm |
|
Net
Weight |
3.53 lb. / 1.6 kg. |
| Shipping Weight | 3.68 lb. / 1.67 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Santoprene |
| Spider | Conex |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 75 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 10.04 |
| Electrical Factor (Qes) | .28 |
| Total Q (Qts) | .28 |
| Comp. Equivalent Vol. (Vas) | .32 ft3 / 9.07 Liters |
| Voice Coil Overhang (Xmax) | 5.7 mm |
| Surface Area of Cone (Sd)m2 | 0.0095m2 |
| Diaphragm Mass (Mms) | 6 Grams |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 48.1 cm3 |
|

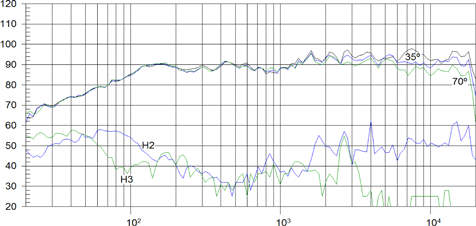

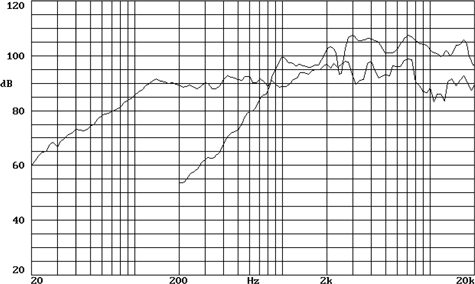

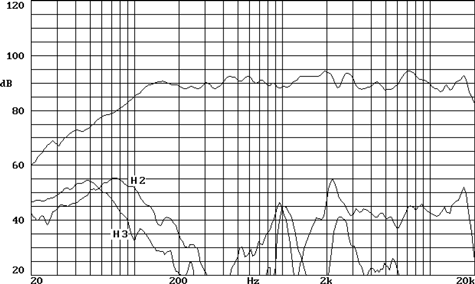

Frequency Response & Distortion Curves |
|
|
|
|
|

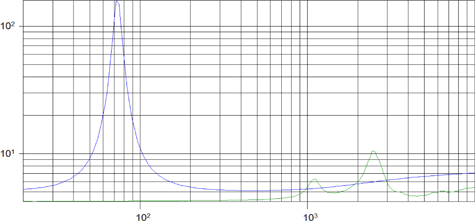

Impedance Curve |
|
|
|
|
|

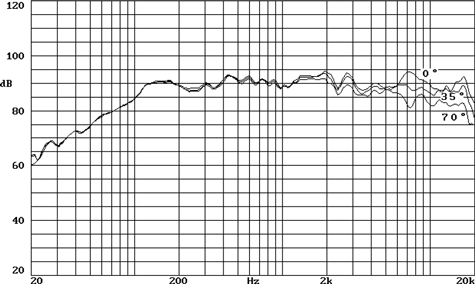

Off-Axis Frequency Response |
|
|
|
|
|

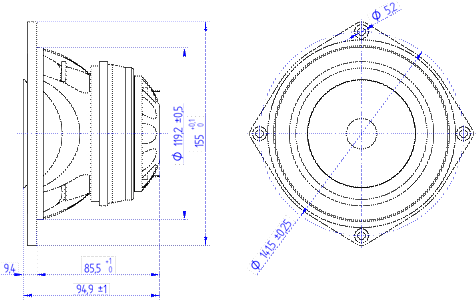

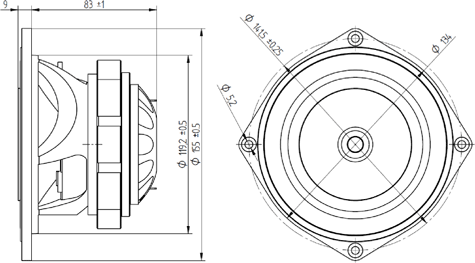

Mounting Dimensions |
|
|
|
|
