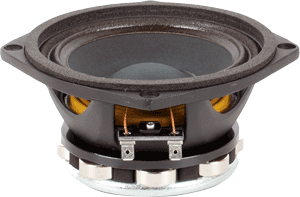

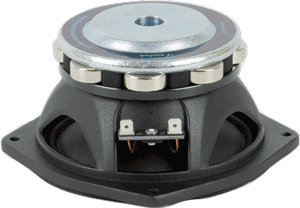

BEYMA 5G40Nd - 5" FULL RANGE SPEAKER
|
|
|
BEYMA 5G40Nd - 5" FULL RANGE SPEAKER |
|
VERSATILE 5" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 90HZ TO 17KHZ! |
|
|
|
BEYMA 5G40ND |
|
Item Price: $128.95 |
|
|
WOOFER MODEL - 5G40Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
5" / 155mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
100 Watts |
| Program Power | 200 Watts |
|
Frequency Response |
150Hz - 17.0KHz |
|
Sensitivity (1W/1m) |
92dB |
|
Voice Coil Diameter |
1.5" / 38.5mm |
| Voice Coil Length | 9mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| BL Factor | 10 N/A |
| Recommended Enclosure Volume | .35-.7 cu. ft. / 10-20 Liters |
| Mounting Information | |
| Overall Diameter | 6.1" / 155mm |
| Bolt Circle Diameter | 5.57" / 141.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.72" / 120mm |
| - Rear Mount | 4.72 / 120mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.019 ft3 / .5 Liters |
| Overall Depth | 2.89" / 73.5mm |
| Net Weight | 2.86 lb. / 1.3 kg. |
| Shipping Weight | 3.96 lb. / 1.8 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Light & Stiff Paper |
| Surround | Treated Cloth |
| Voice Coil | Aluminum Wire |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 140 Hz |
| Impedance (Re) | 6.6 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 2.8 |
| Electrical Factor (Qes) | .53 |
| Total Q (Qts) | .45 |
| Comp. Equivalent Vol. (Vas) | .049 ft3 / 1.4 Liters |
| Voice Coil Overhang (Xmax) | 3.0 mm |
| Surface Area of Cone (Sd) | .0085m2 |
| Diaphragm Mass (Mms) | 9 Grams |
| Reference Efficiency | .7% |
| Displacement Volume | 26 cm3 |
|

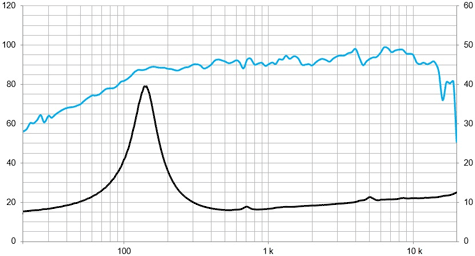

FREQUENCY RESPONSE & IMPEDANCE GRAPH |
|
|
|
|
|

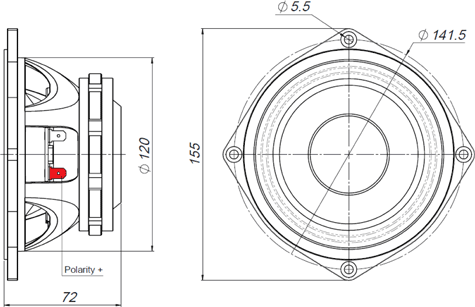

MOUNTING INFORMATION |
|
 |
|
