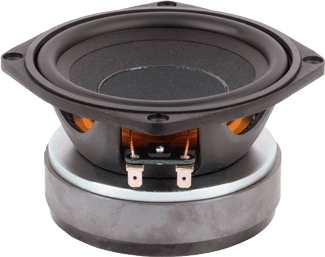

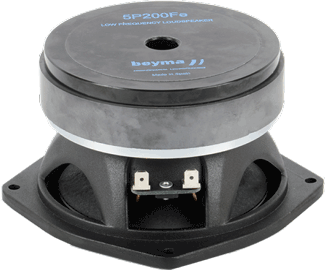

BEYMA 5P200Fe - 5" LOW-MID SPEAKER
|
|
|
BEYMA 5P200Fe - 5" LOW-MID SPEAKER |
|
THE BEYMA 5P200Fe 5" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 70HZ TO 10KHZ & HIGH POWER HANDLING OF 150 WATTS AES! |
|
|
|
BEYMA 5P200Fe |
|
Item Price: $85.50 |
|
|
WOOFER MODEL - 5P200Fe |
|
|
Specifications |
|
|
Nominal Basket Diameter |
5" / 155mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
150 Watts |
| Program Power | 300 Watts |
|
Frequency Response |
70Hz - 10KHz |
|
Sensitivity (1W/1m) |
92dB |
|
Voice Coil Diameter |
1.5" / 38mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 6mm |
| X Damage (peak to peak) | 16mm |
| BL Factor | 8.5 N/A |
| Recommended Enclosure Volume | .14 - .35cu ft. / 4 - 10 Liters |
| Mounting Information | |
| Overall Diameter | 6.1" / 155mm |
| Bolt Circle Diameter | 5.57" / 141.5mm |
| Baffle Cutout Diameter | |
| - Front Mount | 4.69" / 119mm |
| - Rear Mount | 4.8" / 122mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.11" / 78.9mm |
| Net Weight | 4.83 lb. / 2.19 kg. |
| Shipping Weight | 5.45 lb. / 2.47 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Santoprene |
| Shorting Ring | Copper |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 72 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 7.5 |
| Electrical Factor (Qes) | .35 |
| Total Q (Qts) | .33 |
| Comp. Equivalent Vol. (Vas) | .2 ft3 / 5.69 Liters |
| Voice Coil Overhang (Xmax) | 5.7mm |
| Moving Mass (Mms) | 10 Grams |
| Surface Area of Cone (Sd) | .0095m2 |
| Reference Efficiency | .58% |
| Displacement Volume (Vd) | 49 cm3 |
|

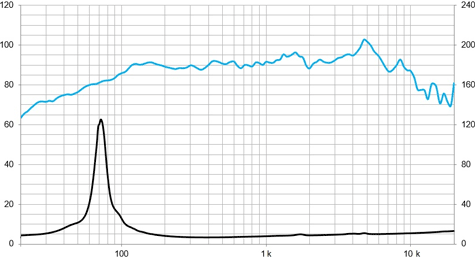

FREQUENCY RESPONSE & IMPEDANCE GRAPH |
|
|
|
|

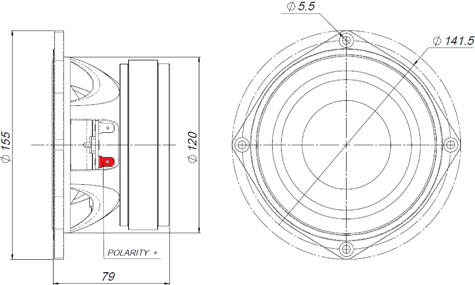

| MOUNTING INFORMATION | |
 |
|
