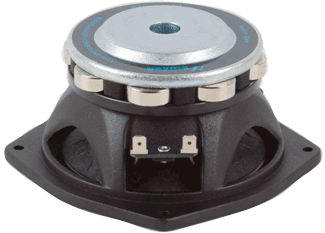

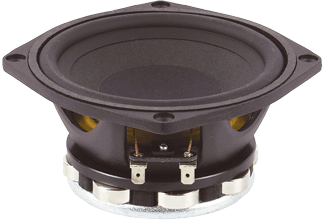

BEYMA 5P200Nd - 5" LOW-MID SPEAKER
|
|
|
BEYMA 5P200Nd - 5" LOW-MID SPEAKER |
|
THE BEYMA 5P200ND 5" SPEAKER HAS A WIDE FREQUENCY RANGE FROM 80HZ TO 10KHZ & HIGH POWER HANDLING OF 150 WATTS AES! |
|
|
|
BEYMA 5P200Nd |
|
Item Price: $169.95 |
|
|
WOOFER MODEL - 5P200Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
5" / 155mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
150 Watts |
| Program Power | 300 Watts |
|
Frequency Response |
80Hz - 10KHz |
|
Sensitivity (1W/1m) |
92dB |
|
Voice Coil Diameter |
1.5" / 38mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 6mm |
| X Damage (peak to peak) | 16mm |
| BL Factor | 9.9 N/A |
| Recommended Enclosure Volume | .1 - .7cu ft. / 3 - 20 Liters |
| Mounting Information | |
| Overall Diameter | 6.1" / 155mm |
| Bolt Circle Diameter | 5.57" / 141.5mm |
| Baffle Cutout Diameter | |
| - Front Mount | 4.69" / 119mm |
| - Rear Mount | 4.8" / 122mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 2.79" / 71mm |
| Net Weight | 2.73 lb. / 1.24 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Santoprene |
| Shorting Ring | Copper |
| Metal Parts | Anti-Corrosion |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 78 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .25 mH |
| Mechanical Q (Qms) | 10.7 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | .16 ft3 / 4.5 Liters |
| Voice Coil Overhang (Xmax) | 5.7mm |
| Moving Mass (Mms) | 11 Grams |
| Surface Area of Cone (Sd) | .0095m2 |
| Reference Efficiency | .68% |
| Displacement Volume (Vd) | 54.15 cm3 |
|

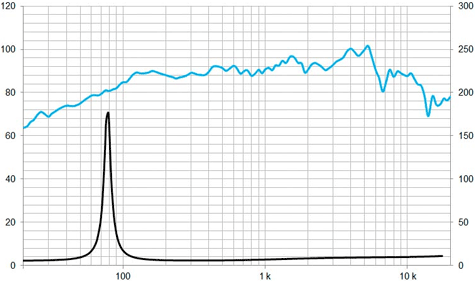

FREQUENCY RESPONSE & IMPEDANCE GRAPH |
|
|
|
|

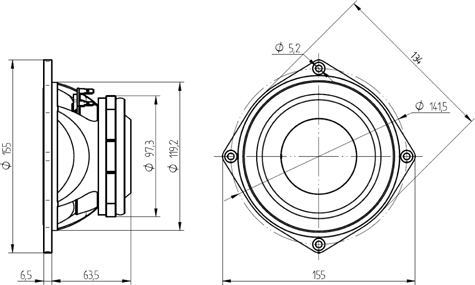

| MOUNTING INFORMATION | |
 |
|
