BEYMA 605Nd - 6.5" LIGHTWEIGHT MID SPEAKER
|
|
|
BEYMA 605Nd - 6.5" LIGHTWEIGHT MID SPEAKER |
|
ACCURATE 6.5" MIDRANGE SPEAKER FOR 3-WAY SPEAKER SYSTEMS! |
|
|
|
BEYMA 605Nd |
|
Item Price: $219.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
125
Watts |
| Program Power |
250
Watts |
|
Frequency
Response |
150Hz
- 8.0KHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
1.5"
/ 38.5mm |
| Voice Coil Length | 7 mm |
| Air Gap Height | 6 mm |
| Magnetic Assembly Weight | 2.65 lb. / 1.2 kg. |
|
Mounting Information |
|
|
Overall Diameter |
6.85"
/ 174mm |
|
Bolt
Circle Diameter |
6.22"
/ 158mm |
|
Baffle Cutout Diameter- |
|
| - Front Mount | 5.83" / 148mm |
| - Rear Mount | 5.59" / 142mm |
|
No.
Of Mounting Holes |
4 |
| Volume Displaced By Driver | 0.03 ft3 / .75 Liters |
|
Overall
Depth |
2.64"
/ 67mm |
|
Net
Weight |
3.31 lb. / 1.5 kg. |
|
Shipping Weight |
3.86 lb. / 1.75 kg. |
|
Materials |
|
|
Basket |
Die Cast Aluminum |
|
Cone |
Light Stiff Paper |
|
Surround |
Foam |
| Spider | Cotton |
|
Voice Coil |
Edgewound Aluminum Wire |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
|
Resonant Frequency (fs) |
150 Hz |
|
Impedance
(Re) |
6.0 ohms |
| Coil Inductance (Le) | .5 mH |
|
Mechanical Q (Qms) |
9.68 |
| Electrical Factor(Qes) | .32 |
|
Total Q (Qts) |
.31 |
|
Comp. Equivalent Vol. (Vas) |
.1 ft3 / 3 Liters |
|
Voice Coil Overhang (Xmax) |
1.0 mm |
| Reference Efficiency | 3.3% |
| Displacement Volume | 14 cm3 |
|

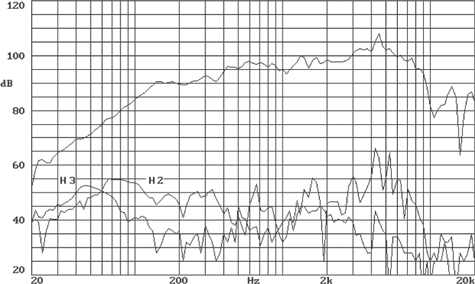

Frequency Response & Distortion Curve |
|
 |
|

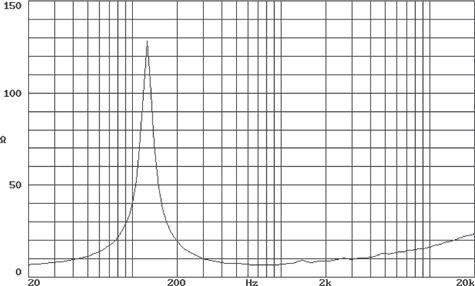

| Impedance Curve | |
 |
|

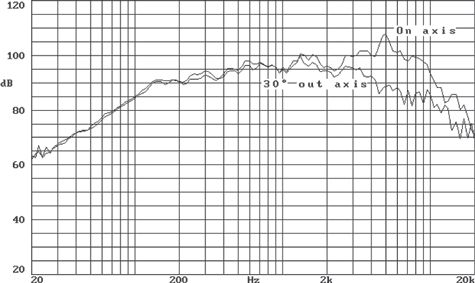

| Frequency Response Out Of Axis | |
 |
|

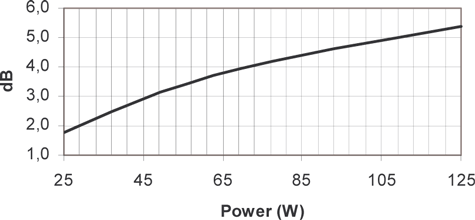

| Power Compression Losses | |
 |
|

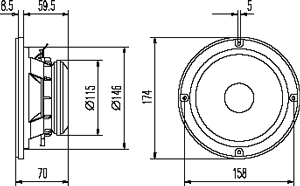

| Dimensions Drawings | |
|
|
|
