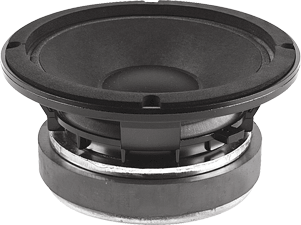

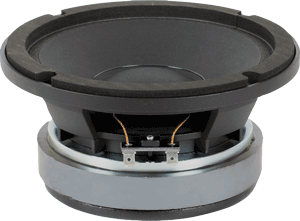

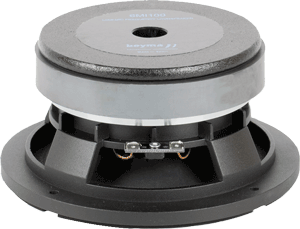

BEYMA 6Mi100 - 6.5" PRO MIDRANGE SPEAKER
|
|
|
BEYMA 6Mi100 - 6.5" PRO MIDRANGE SPEAKER |
|
SUPER SMOOTH SOUND FROM THIS POWERFUL 6.5" MIDRANGE SPEAKER! |
|
|
|
BEYMA 6Mi100 |
|
Item Price: $149.95 |
|
|
VERY LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
WOOFER MODEL - 6Mi100 |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
250 Watts |
| Program Power | 500 Watts |
|
Frequency Response |
100Hz - 8.0KHz |
|
Sensitivity (1W/1m) |
94dB |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 9.2 mm |
| Air Gap Height | 7 mm |
| Mounting Information | |
| Overall Diameter | 6.85" / 174mm |
| Bolt Circle Diameter | 6.22" / 158mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.75" / 146mm |
| - Rear Mount | 5.59" / 142mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.026 ft3 / .75 Liters |
| Overall Depth | 3.35" / 85mm |
| Net Weight | 4.84 lb. / 2.2 kg. |
| Shipping Weight | 4.95 lb. / 2.25 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Foam |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 128 Hz |
| Impedance (Re) | 6 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 8.6 |
| Electrical Factor (Qes) | .55 |
| Total Q (Qts) | .51 |
| Comp. Equivalent Vol. (Vas) | .11 ft3 / 3.07 Liters |
| Voice Coil Overhang (Xmax) | 3.0 mm |
| Moving Mass (Mms) | 14 Grams |
| BL Factor (T-M) | 10.8 |
| Reference Efficiency | 1.2% |
| Displacement Volume | 42 cm3 |
|

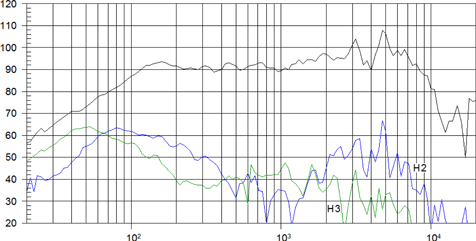

FREQUENCY RESPONSE & DISTORTION CURVES |
|
 |
|

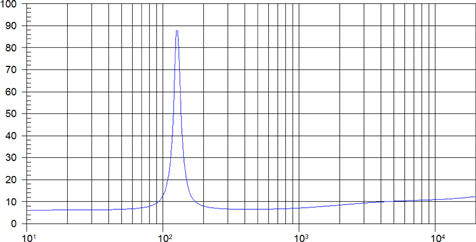

| IMPEDANCE CURVE | |
|
|
|
|
MOUNTING INFORMATION |
|
 |
|
