BEYMA 6MI90 - 6.5" PRO MIDRANGE SPEAKER
|
|
|
BEYMA 6MI90 - 6.5" PRO MIDRANGE SPEAKER |
|
EXCELLENT 6.5" MIDRANGE SPEAKER IN 3-WAY SPEAKER SYSTEMS! |
|
|
|

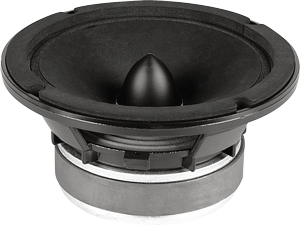

BEYMA 6MI90 |
|
Item Price: $119.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
125
Watts |
| Program Power |
250
Watts |
|
Frequency
Response |
150Hz
- 8.0KHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
1.5"
/ 38.5mm |
| Voice Coil Length | 7 mm |
| Air Gap Height | 6 mm |
| Magnetic Assembly Weight | 4.4 lb. / 2.0 kg. |
|
Mounting Information |
|
|
Overall Diameter |
6.85" / 174mm |
|
Bolt
Circle Diameter |
6.22" / 158mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.75" / 146mm |
| - Rear Mount | 5.59" / 142mm |
|
No.
Of Mounting Holes |
4 |
| Volume Displaced By Driver | 0.026 ft3 / .75 Liters |
| Overall Depth | 3.35" / 85mm |
| Net Weight | 4.84 lb. / 2.2 kg. |
| Shipping Weight | 4.95 lb. / 2.25 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Foam |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 120 Hz |
|
Impedance
(Re) |
6.0 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | 6.8 |
| Electrical Factor (Qes) | .47 |
| Total Q (Qts) | .44 |
| Comp. Equivalent Vol. (Vas) | .25 ft3 / 7 Liters |
| Voice Coil Overhang (Xmax) | 1.0 mm |
| Reference Efficiency | 1.7% |
| Displacement Volume | 14 cm3 |
|
FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
