BEYMA 6CX200Fe - 6.5" COAXIAL SPEAKER
|
|
|
BEYMA 6CX200Fe - 6.5" COAXIAL SPEAKER |
|
THE NEW BEYMA 6CX200Fe COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT AND IS VERY SMOOTH & DETAILED SOUNDING! |
|
|
|
BEYMA 6CX200Fe |
|
Item Price: $201.75 |
|
|
COAXIAL MODEL |
6CX200Fe |
|
Specifications |
|
|
Nominal
Basket Diameter |
6.5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
200
Watts |
| Program Power |
400
Watts |
|
Frequency
Response |
60Hz
- 20kHz |
|
High Frequency Sensitivity (1W/1m) |
102dB |
| Low Frequency Sensitivity (1W/1m) | 94dB |
| HF Frequency Dispersion |
70º
|
|
Voice
Coil Diameter |
2"
/ 50.8mm |
| Recom. Crossover Frequency | 3.5kHz or higher @ 12dB/oct. |
| Voice Coil Length | 13 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 32 mm |
| BL Factor | 9.15 N/A |
|
Mounting Information |
|
|
Overall Diameter |
6.4"
/ 162.5mm |
| Bolt Circle Diameter |
6.79"
/ 172.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.72" / 145.3mm |
| - Rear Mount | 5.72" / 145.3mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .55 Liters |
|
Overall
Depth |
4.17"
/ 106mm |
|
Net
Weight |
7.9 lb. / 3.6 kg. |
| Shipping Weight | 8.8 lb. / 4.0 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | PM-4 |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 65 Hz |
| Impedance (Re) | 4.9 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 5.1 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .32 |
| Comp. Equivalent Vol. (Vas) | .37 ft3 / 10.5 Liters |
| Voice Coil Overhang (Xmax) | 5.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Reference Efficiency | .8% |
| Displacement Volume (Vd) | 64.0 cm3 |
|

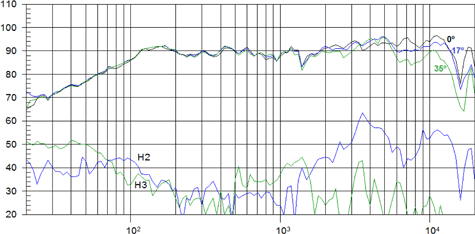

Frequency Response & Distortion Curves |
|
|
|
|
|

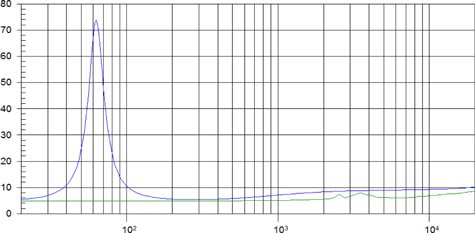

Impedance |
|
|
|
|
|

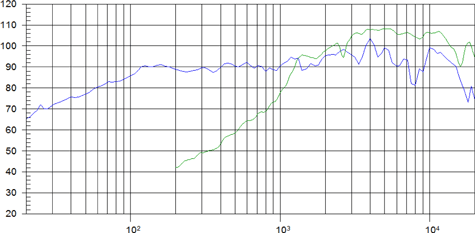

Filtered & Off-Axis Frequency Response |
|
|
|
|
|

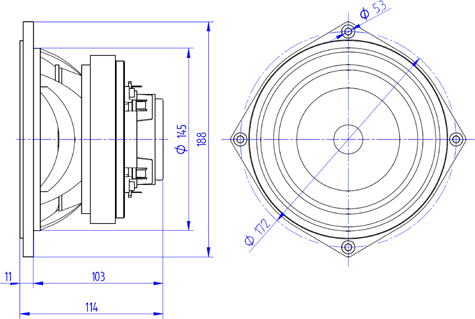

Mounting Dimensions |
|
|
|
|
