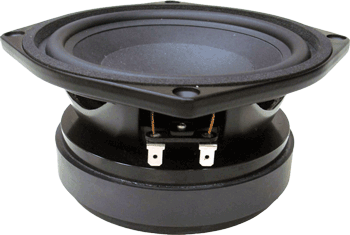

BEYMA 6P200Fe - 6.5" POWERFUL SPEAKER
|
|
|
BEYMA 6P200Fe - 6.5" POWERFUL SPEAKER |
|
THE BEYMA 6P200FE HAS STRONG BASS WITH CLEAR MIDS WITH 400 WATTS POWER HANDLING AND A HIGH 5.5MM XMAX! |
|
|
|
BEYMA 6P200Fe |
|
Item Price: $112.50 |
|
|
WOOFER MODEL - 6P200Fe |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
200 Watts |
| Program Power | 400 Watts |
|
Frequency Response |
55Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
93dB |
| Recom. Enclosure Volume | .35-1.4 ft3 / 6-20 Liters |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 9mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 10.5 N/A |
| Magnetic Assembly Weight | 4.4 lb. / 2 kg. |
| Mounting Information | |
| Overall Diameter | 7.38" / 187.5mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter- | 5.7" / 145.3mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .6 Liters |
| Overall Depth | 3.4" / 86.5mm |
| Net Weight | 6.83 lb. / 3.21kg. |
| Shipping Weight | 7.77 lb. / 3.5kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Foam |
| Voice Coil | Aluminum Wire |
| Spider | Conex |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 58 Hz |
| Impedance (Re) | 4.9 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Factor (Qes) | .27 |
| Total Q (Qts) | .26 |
| Comp. Equivalent Vol. (Vas) | .39 ft3 / 11.1 Liters |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Surface Area of Cone (Sd)m2 | .0135 |
| Moving Mass (Mms) | 17 Grams |
| Reference Efficiency | .75% |
| Displacement Volume (Vd) | 74.25 cm3 |
|

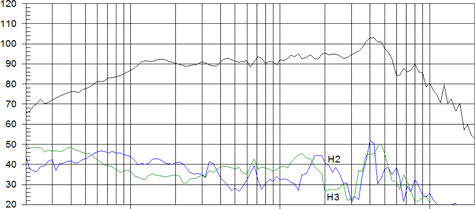

FREQUENCY RESPONSE & DISTORTION CURVES |
|
 |
|

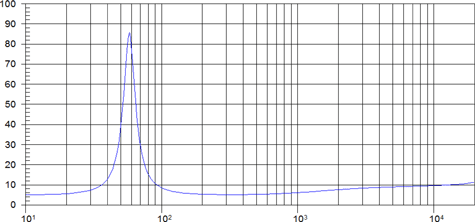

| IMPEDANCE CURVE | |
 |
|

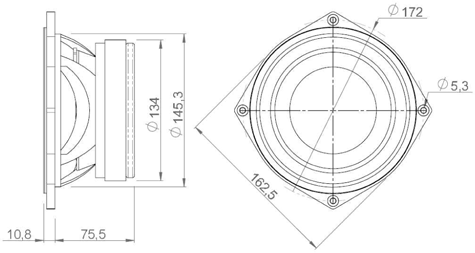

| DIMENSIONAL DRAWING | |
|
|
|
