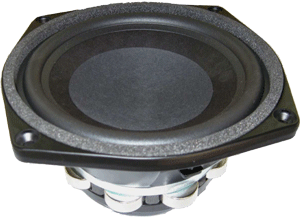

BEYMA 6P200Nd - 6.5" LIGHTWEIGHT NEODYMIUM WOOFER
|
|
|
BEYMA 6P200Nd - 6.5" LIGHTWEIGHT NEODYMIUM WOOFER |
|
STRONG BASS WITH CLEAR MIDS, 400 WATTS POWER HANDLING AND A LIGHTWEIGHT NEODYMIUM MAGNET! |
|
|
|
BEYMA 6P200Nd |
|
Item Price: $279.95 |
|
|
WOOFER MODEL - 6P200Nd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
200 Watts |
| Program Power | 400 Watts |
|
Frequency Response |
60Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
92 dB |
| Recom. Enclosure Volume | .35-1.4 ft3 / 10-40 Liters |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 14mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 10.5 N/A |
| Magnetic Assembly Weight | 3.52 lb. / 1.6 kg. |
| Mounting Information | |
| Overall Diameter | 7.38" / 187.5mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter- | 5.7" / 145.3mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .6 Liters |
| Overall Depth | 3.46" / 88mm |
| Net Weight | 5.29 lb. / 2.4 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Foam |
| Voice Coil | Aluminum Wire |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 56 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 3.69 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | .42 ft3 / 11.9 Liters |
| Voice Coil Overhang (Xmax) | 5.5 mm |
| Surface Area of Cone (Sd)m2 | .0135 |
| Reference Efficiency | .65% |
| Displacement Volume (Vd) | 74.25 cm3 |
|

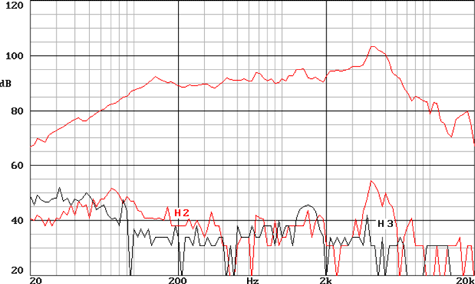

FREQUENCY RESPONSE & DISTORTION CURVES |
|
 |
|
| DIMENSIONAL DRAWINGS | |
|
|
|
