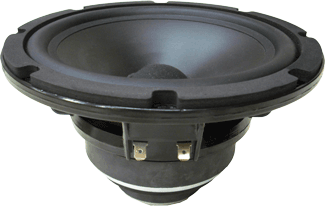

BEYMA 8BXN - 8" COAXIAL SPEAKER
|
|
|
BEYMA 8BXN - 8" COAXIAL SPEAKER |
|
THIS 8" WOOFER & CONCENTRIC MOUNTED 1" TWEETER SOUNDS SMOOTH! |
|
|
|
BEYMA 8BXN |
|
Item Price: $259.95 |
|
|
COAXIAL MODEL |
8BXN |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
100
Watts |
| Program Power |
200
Watts |
|
Frequency
Response |
60Hz
- 8.0kHz |
|
Sensitivity
(1W/1m) |
92dB |
|
Voice
Coil Diameter |
1.5"
/ 38.5mm |
| Recom. Enclosure Volume | .75-2.25 ft3 / 20-60 Liters |
| Voice Coil Length | 14 mm |
| Air Gap Height | 6 mm |
| X Damage (peak to peak) | 20 mm |
| BL Factor | 7.3 N/A |
| Magnetic Assembly Weight | 4.4 lb. / 2 kg. |
|
High Frequency Tweeter |
|
| Impedance | 8 ohms |
| Minimum Impedance | 6 ohms @ 4kHz |
|
AES
Power Rating |
20 Watts |
| Frequency Response | 3kHz to 20kHz |
|
Sensitivity
(1W/1m) |
102dB |
| Dispersion | 90° |
| Voice Coil Diameter | 1" / 25.4mm |
| Flux Density | 1.5 T |
| BL Factor | 4 N/A |
| X Damage | 20mm |
|
Mounting Information |
|
|
Overall Diameter |
8.34" / 212mm |
| Bolt Circle Diameter |
7.79"
/ 198mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.04" / 179mm |
| - Rear Mount | 7.16" / 182mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.056 ft3 / 1.5 Liters |
|
Overall
Depth |
4.37"
/ 111mm |
|
Net
Weight |
6.39 lb. / 2.9 kg. |
| Shipping Weight | 6.83 lb. / 3.1 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Polypropylene |
| Surround | Rubber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 57 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 4.83 |
| Electrical Factor (Qes) | .77 |
| Total Q (Qts) | .66 |
| Comp. Equivalent Vol. (Vas) | .77 ft3 / 22 Liters |
| Voice Coil Overhang (Xmax) | 5.0 mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency | .41% |
| Displacement Volume (Vd) | 110 cm3 |
|

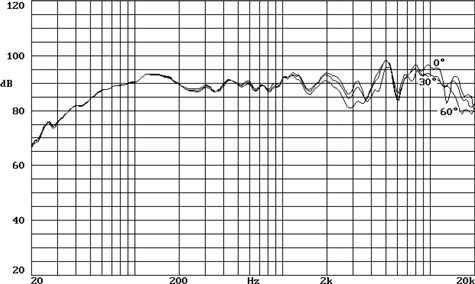

Off Axis Frequency Response |
|
|
|
|
|

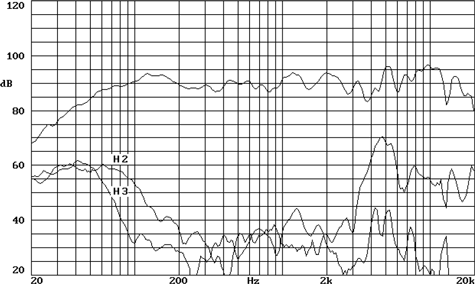

Frequency Response & Distortion Curves |
|
|
|
|
|

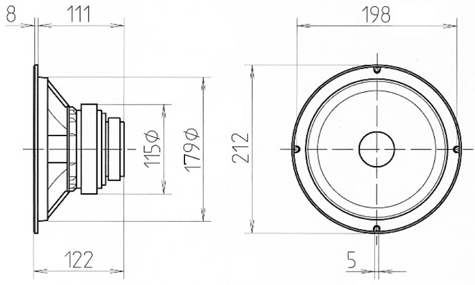

Mounting Dimensions |
|
|
|
|
