BEYMA 8MC300ND - 8" MID-BASS / BASS NEODYMIUM SPEAKER
|
|
|
BEYMA 8MC300ND - 8" MID-BASS / BASS NEODYMIUM SPEAKER |
|
THE BEYMA 8MC300ND MID-BASS SPEAKER HAS AN ALUMINUM DEMODULATION RING FOR VERY LOW DISTORTION! |
|
|
|
BEYMA 8MC300Nd |
|
8 Ohm Version
Item Price: $216.75 |
|
|
16 Ohm Version
Item Price: $216.75 |
|
|
WOOFER MODEL - 8MC300ND |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
& 16 ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
80Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 35 mm |
| BL Factor | 16 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.34" / 212mm |
| Bolt Circle Diameter |
7.68"
/ 195mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.16" / 182mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
3.78"
/ 96mm |
|
Net
Weight |
4.2 lb. / 1.9 kg. |
| Shipping Weight | 4.9 lb. / 2.2 kg. |
|
Materials |
|
| Basket | Die-Cast Aluminum |
| Cone | High Stiffness Paper |
| Spider | Cotton Fiber |
| Surround | Treated Cloth |
| Voice Coil | Round Aluminum Wire |
| Former | Polyimide Fiber Glass |
| Demodulation Ring | Aluminum |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 62 Hz |
| Impedance (Re) | 6.1 ohms |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 3.8 |
| Electrical Factor (Qes) | .24 |
| Total Q (Qts) | .22 |
| Comp. Equivalent Vol. (Vas) | .64 ft3 / 18 Liters |
| Voice Coil Overhang (Xmax) | 6 mm |
| Moving Mass (Mms) | 25 Grams |
| Surface Area of Cone (Sd)m2 | 0.0220m2 |
| Reference Efficiency | 1.74% |
| Displacement Volume (Vd) | 132 cm3 |
|

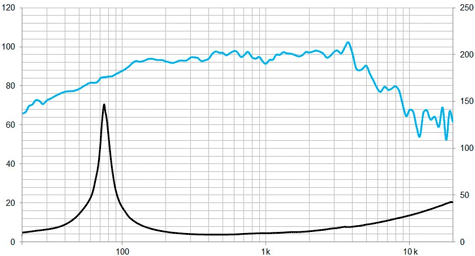

Frequency Response & Impedance Curves |
|
| Frequency response measured with loudspeaker on infinite baffle in anechoic chamber, 1W @ 1m | |
|
|
|
|

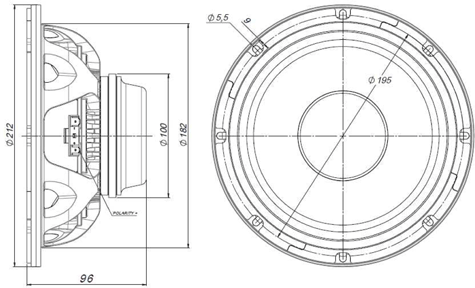

Mounting Dimensions |
|
|
|
|
