BEYMA 8WRS300 - 8" MID-BASS / BASS SPEAKER
|
|
|
BEYMA 8WRS300 - 8" MID-BASS / BASS SPEAKER |
|
THE BEYMA 8WR300 8" SPEAKER HAS A TIGHT BASS WITH SMOOTH DETAILED MIDS! |
|
|
|
BEYMA 8WRS300 |
|
8 Ohms
Item Price: $117.95 |
|
|
WOOFER MODEL - 8WRS300 |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
70Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 32 mm |
| BL Factor | 15.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.35" / 212mm |
| Bolt Circle Diameter |
7.68"
/ 195mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.17" / 182mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
3.74"
/ 95mm |
|
Net
Weight |
7.16 lb. / 3.25 kg. |
| Shipping Weight | 7.8 lb. / 3.55 kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Cone | Treated Paper |
| Surround | Treated Cloth |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 69 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 2.7 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | .46 ft3 / 13.1 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0220m2 |
| Reference Efficiency | 1.4% |
| Displacement Volume (Vd) | 132 cm3 |
|

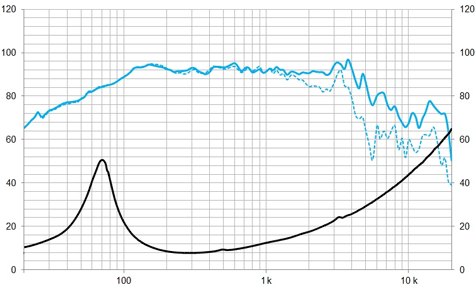

Frequency Response & Impedance Curves |
|
|
|
|
|

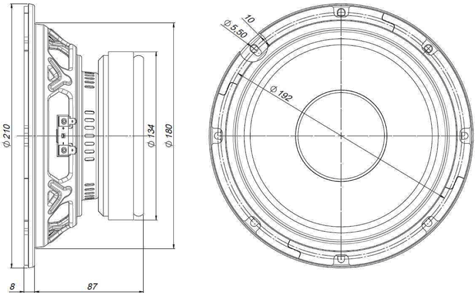

Mounting Dimensions |
|
|
|
|
