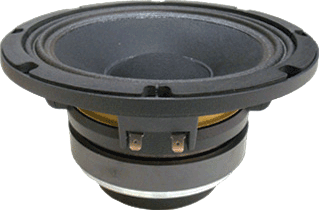

BEYMA 8XC20 - 8" COAXIAL SPEAKER
|
|
|
BEYMA 8XC20 - 8" COAXIAL SPEAKER |
|
THE NEW BEYMA 8XC20 COAXIAL SPEAKER IS SMOOTH SOUNDING & WEIGHS 8.14LBS.! |
|
|
|
BEYMA 8XC20 |
|
Item Price: $279.95 |
|
|
Recommended 2-Way Crossover
FD2XC1 -
|
|
|
COAXIAL MODEL |
8XC20 |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
170
Watts |
| Program Power |
340
Watts |
|
Frequency
Response |
65Hz
- 7.0kHz |
|
Sensitivity
(1W/1m) |
95dB |
|
Voice
Coil Diameter |
2"
/ 51.7mm |
| Recom. Enclosure Volume | .35-1.06 ft3 / 10-30 Liters |
| Voice Coil Length | 17 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 11.3 N/A |
| Magnetic Assembly Weight | 3.4 lb. / 7.48 kg. |
|
High Frequency Driver |
|
| Impedance | 16 ohms |
| Minimum Impedance | 10.9 ohms @ 4.5kHz |
|
AES
Power Rating |
40 Watts AES @ 1.5kHz |
| Frequency Response | 700Hz to 20kHz |
|
Sensitivity
(1W/1m) |
105dB |
| Dispersion | 90° |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Flux Density | 1.8 T |
| BL Factor | 10.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.35"
/ 212mm |
| Bolt Circle Diameter |
7.79"
/ 198mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.12" / 181mm |
| - Rear Mount | 7.12" / 181mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.056 ft3 / 1.5 Liters |
|
Overall
Depth |
5.16"
/ 153mm |
|
Net
Weight |
8.14 lb. / 3.7 kg. |
| Shipping Weight | 9.24 lb. / 4.2 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 75 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 7.4 |
| Electrical Factor (Qes) | .42 |
| Total Q (Qts) | .4 |
| Comp. Equivalent Vol. (Vas) | .6 ft3 / 17 Liters |
| Voice Coil Overhang (Xmax) | 5 mm |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 111 cm3 |
|

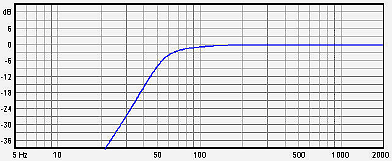

Predicted Low Frequency Response - Vb=20L, Fb=62Hz |
|
|
|
|
|

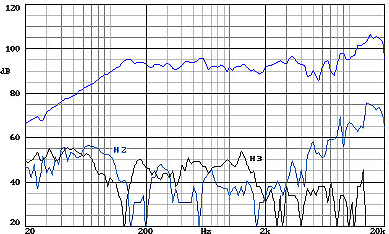

Frequency Response & Distortion Curves |
|
|
|
|
|

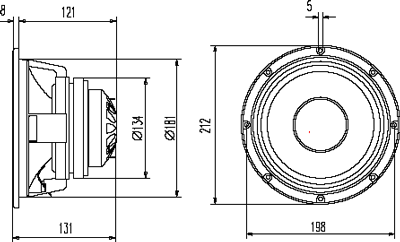

Mounting Dimensions |
|
|
|
|
