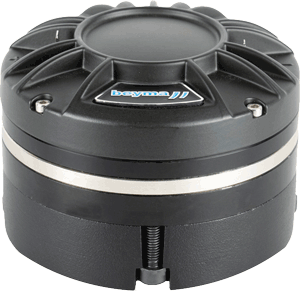

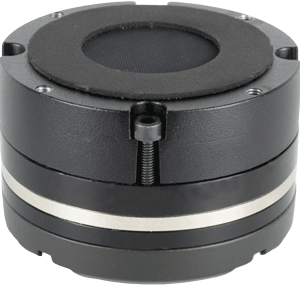

BEYMA CD-320Nd/Ti - 2" LIGHTWEIGHT HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD-320Nd/Ti - 2" LIGHTWEIGHT HIGH FREQUENCY DRIVER |
|
THIS BEYMA CD-320ND/Ti 2" HF DRIVER DELIVERS A FORWARD SOUNDING DETAILED MIDRANGE WITH NATURAL HIGHS! |
|
|
|
BEYMA CD-320Nd/Ti |
|
Item Price: $314.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
|
5.7 ohms |
| D.C. Resistance (Re) | 4.4 ohms |
| AES Power Rating | 90 Watts @ 800Hz |
|
AES
Power Rating |
130 Watts @ 1.2kHz |
| Program Power Rating | 180 Watts above 800Hz |
| Program Power Rating | 260 Watts above 1.2kHz |
|
Sensitivity
(1W/1m) |
110dB 1w @ 1m coupled w/ 50°x 50° horn |
|
Frequency
Response |
500Hz
- 18kHz |
| Recommended Crossover | 800Hz or higher, 12dB/octave |
| Voice Coil Diameter |
3" /
76.2mm |
| Flux Density | 2T |
| BL Factor | 10 T-M |
|
Mounting Information |
|
| Overall Diameter |
4.4" / 112mm |
|
Overall
Depth |
3" / 78mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 4.4 lb. / 2 kg. |
| Shipping Weight | 4.84 lb. / 2.2 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Nomex |
| Surround | Titanium |
| Magnet | High Grade Neodymium |

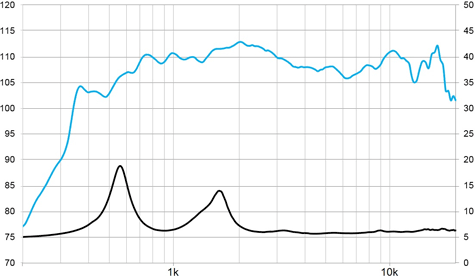

| FREQUENCY RESPONSE & IMPEDANCE CURVE | |
 |
|

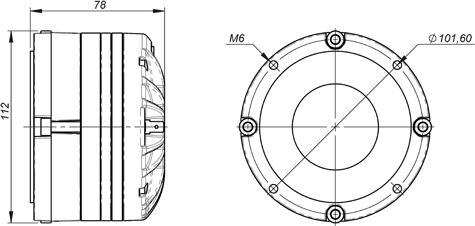

| DRAWING | |
 |
|
