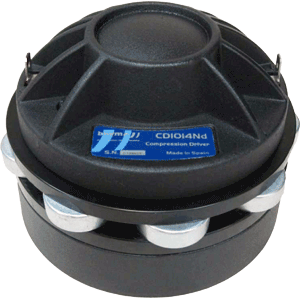

BEYMA CD1014Nd - 1.4" PRO HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD1014Nd - 1.4" PRO HIGH FREQUENCY DRIVER |
|
THIS 1.4" DRIVER DELIVERS A SUPER SMOOTH SOUND WITH NICE DETAIL & PERCUSSIVENESS THANKS TO ITS' PM-4 POLYMER DIAPHRAGM! |
|
|
|
BEYMA CD1014Nd |
|
Item Price: $289.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
5.25 ohms @ 4.5 kHz |
| D.C. Resistance | 4.3 ohms |
|
AES
Power Rating |
70 Watts @ 1.2kHz |
|
Program
Power Rating |
140 Watts above 1.2kHz |
|
Sensitivity
(1W/1m) |
110dB 1w @ 1m w/ TD-365 horn |
|
Frequency
Response |
700Hz
- 19kHz |
| Recommended Crossover | 1.2kHz or higher, 12dB/octave |
| Voice Coil Diameter |
1.75" /
44.4mm |
| Magnetic Assembly Weight | 2.64 lb. / 1.2 kg. |
| Flux Density | 1.65T |
| BL Factor | 6.6 N/A |
|
Mounting Information |
|
| Overall Diameter |
4.5" / 115mm |
|
Overall
Depth |
2.9" / 76mm |
| Mounting | |
| - (4) M5 threaded holes 90° apart on 4" diameter circle | |
| - Mounting hardware is supplied | |
| Net Weight | 3.32 lb. / 1.51kg. |
| Shipping Weight | 5.03 lb. / 2.28 kg. |
|
Materials |
|
| Diaphragm | PM-4 Polymer |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

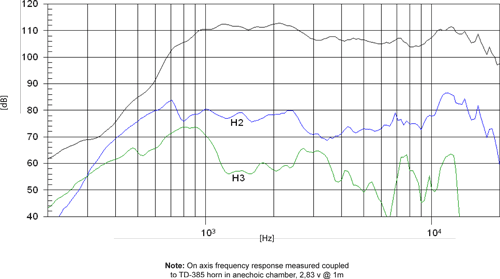

| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|

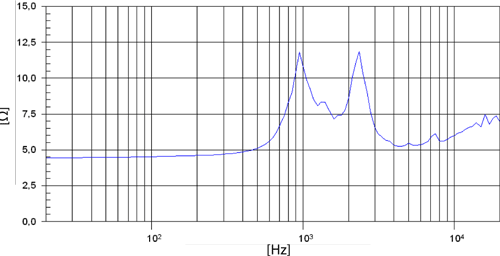

| IMPEDANCE CURVE | |
 |
|

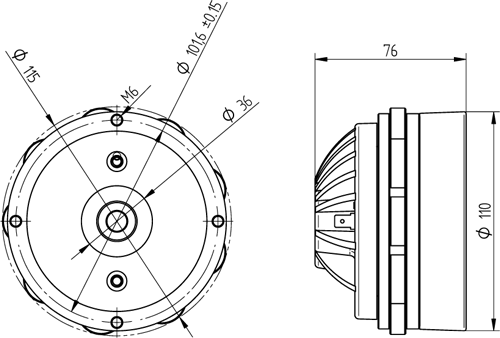

| MOUNTING INFORMATION | |
 |
|
