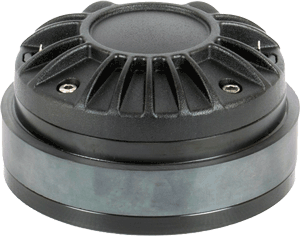

BEYMA CD1114Fe - 1.4" PRO HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD1114Fe - 1.4" PRO HIGH FREQUENCY DRIVER |
|
BEYMA CD1114FE 1.4" DRIVER DELIVERS A VERY SMOOTH SOUND W/ NICE DETAIL THANKS TO ITS' PM-4 POLYMER DIAPHRAGM! |
|
|
|
BEYMA CD1114Fe |
|
Item Price: $145.95 New Low Price |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
5.5 ohms |
| D.C. Resistance | 4.4 ohms |
|
AES
Power Rating |
70 Watts @ 1.5kHz |
|
Program
Power Rating |
140 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
109dB 1w @ 1m w/ TD-365 horn |
|
Frequency
Response |
700Hz
- 19kHz |
| Recommended Crossover | 1.5kHz or higher, 12dB/octave |
| Voice Coil Diameter |
1.75" /
44.4mm |
| Flux Density | 1.5T |
| BL Factor | 6.6 N/A |
|
Mounting Information |
|
| Overall Diameter |
4.3" / 110mm |
|
Overall
Depth |
2.3" / 58mm |
| Mounting | (4) M5 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 4.18 lb. / 1.9kg. |
| Shipping Weight | 4.4 lb. / 2 kg. |
|
Materials |
|
| Diaphragm | PM-4 Polymer |
| Voice Coil | Double Layer In/Out Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

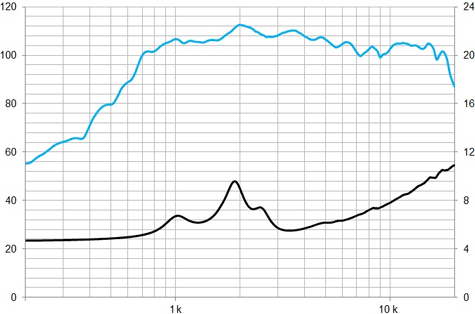

| FREQUENCY RESPONSE & IMPEDANCE CURVE | |
 |
|

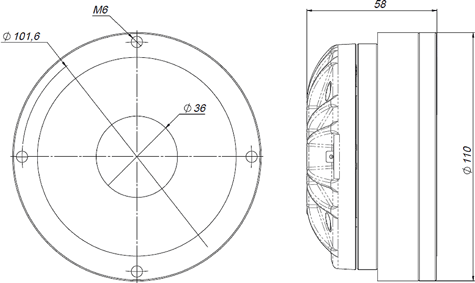

| MOUNTING INFORMATION | |
 |
|
