BEYMA CD11Fe/S - 1" PRO NEO H.F. DRIVER
|
|
|
BEYMA CD11Fe/S - 1" PRO NEO H.F. DRIVER |
|
THE BEYMA CD11Fe/S HAS A NATURAL SOUNDING MIDRANGE W/ VERY LOW DISTORTION & NICE FLAT HIGH FREQUENCY! |
|
|
|
BEYMA CD11Fe/S |
|
Item Price: $123.95 New Low Price |
|
|
Beyma CD11Fe/Nd-8Dia - Replacement
Diaphragm
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
| D.C. Resistance | 4.3 ohms |
|
AES
Power Rating |
70 Watts above 1.5kHz |
| Program Power | 140 Watts above 1.5kHz |
| Sensitivity (1W/1m) | 109dB 1w @ 1m w/ TD-164 horn |
|
Frequency
Response |
700Hz
- 19kHz |
| Recommended Crossover | 1.5 kHz or higher |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Magnetic Assembly Weight | 2.42 lb. / 1.1 kg. |
| Flux Density | 1.5T |
| BL Factor | 6.6 N/A |
|
Mounting Information |
|
| Overall Diameter |
4.3" / 110mm |
|
Overall
Depth |
3.1" / 78mm |
| Mounting | 1 3/8" Screw-on Type |
|
Net
Weight |
4.0 lb. / 1.8 kg. |
| Shipping Weight | 4.2 lb. / 1.9kg. |
|
Materials |
|
| Diaphragm | PM4 Polymer |
| Voice Coil | DUO Double Layer In/Outer Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

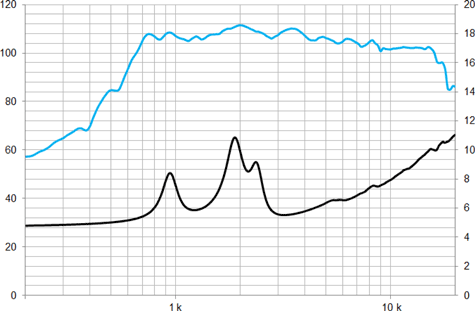

| Freq. Response & Impedance Curves: On axis, 1w @ 1m | |
 |
|

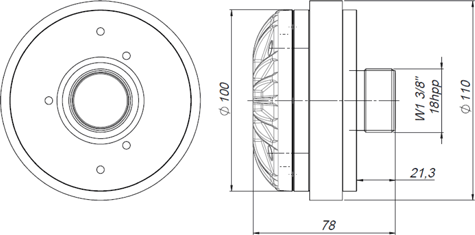

| Overall Dimensions | |
 |
|
