BEYMA CD14Nd - 1.4" LIGHTWEIGHT HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD14Nd - 1.4" LIGHTWEIGHT HIGH FREQUENCY DRIVER |
|
THIS 1.4" DRIVER DELIVERS A SUPER SMOOTH SOUND WITH NICE DETAIL & PERCUSSIVENESS THANKS TO ITS' PM-4 POLYMER DIAPHRAGM! |
|
|
|
BEYMA CD14Nd |
|
Item Price: $263.95 New Low Price |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
7.6 ohms @ 3.5 kHz |
| D.C. Resistance | 5.3 ohms |
|
AES
Power Rating |
80 Watts @ 1kHz |
|
Program
Power Rating |
160 Watts above 1kHz |
|
Sensitivity
(1W/1m) |
108dB 1w @ 1m w/ TD-385 horn |
|
Frequency
Response |
600Hz
- 17kHz |
| Recommended Crossover | 800Hz or higher, 12dB/octave |
| Voice Coil Diameter |
2.5" /
63mm |
| Flux Density | 1.7T |
| BL Factor | 10 T-M |
|
Mounting Information |
|
| Overall Diameter |
4.72" / 120mm |
|
Overall
Depth |
1.93" / 49mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 4.19 lb. / 1.9kg. |
| Shipping Weight | 4.63 lb. / 2.1 kg. |
|
Materials |
|
| Diaphragm | PM-4 Polymer |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

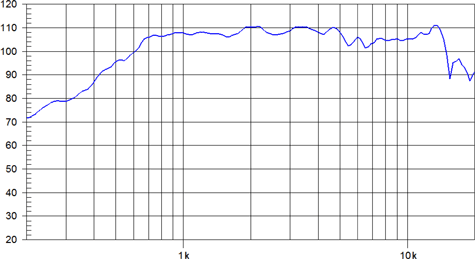

| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|

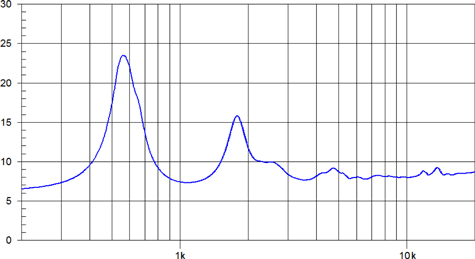

| IMPEDANCE CURVE | |
 |
|
