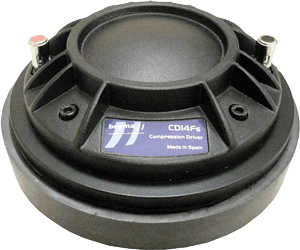

BEYMA CD14Fe- 1.4" HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD14Fe- 1.4" HIGH FREQUENCY DRIVER |
|
THIS 1.4" DRIVER DELIVERS A SUPER SMOOTH SOUND WITH NICE DETAIL & PERCUSSIVENESS THANKS TO ITS' PM-4 POLYMER DIAPHRAGM! |
|
|
|
BEYMA CD14Fe |
|
Item Price: $158.95 New Low Price |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
7 ohms @ 3 kHz |
| D.C. Resistance | 5.3 ohms |
|
AES
Power Rating |
80 Watts @ 1kHz |
|
Program
Power Rating |
160 Watts above 1kHz |
|
Sensitivity
(1W/1m) |
107dB 1w @ 1m w/ TD-385 horn |
|
Frequency
Response |
500Hz
- 16kHz |
| Recommended Crossover | 800Hz or higher, 12dB/octave |
| Voice Coil Diameter |
2.5" /
63mm |
| Flux Density | 1.55T |
| BL Factor | 9.1 T-M |
| Exit Angle | 14.32° |
|
Mounting Information |
|
| Overall Diameter |
5.71" / 145mm |
|
Overall
Depth |
2.44" / 62mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 7.27 lb. / 3.1kg. |
| Shipping Weight | 7.72 lb. / 3.5 kg. |
|
Materials |
|
| Diaphragm | PM-4 Polymer |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |

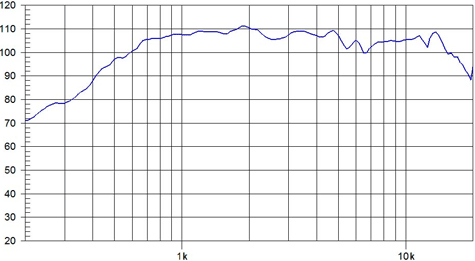

| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|

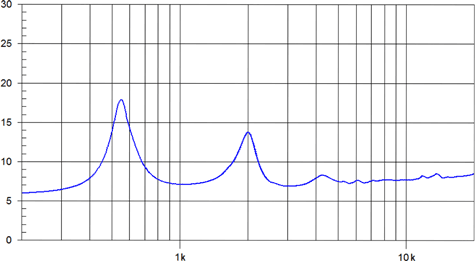

| IMPEDANCE CURVE | |
 |
|

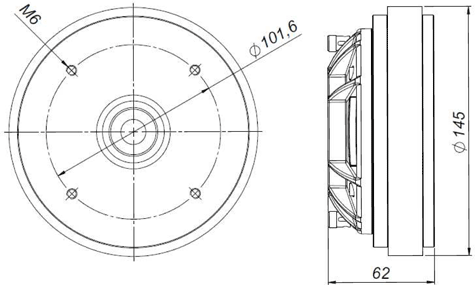

| MOUNTING DIMENSIONS | |
 |
|
