• NEW NEXT GENERATION HIGH PERFORMANCE BEYMA CD-151FE/PK 1 INCH EXIT HIGH FREQUENCY DRIVER
• HANDLES A POWERFUL 70 WATTS @ 1.4KHZ AES & 140 WATTS @ 1.8KHZ PROGRAM POWER
• FEATURES DEPLOCEX PATENT PENDING TECHNOLOGY FOR IMPROVED COOLING, LOWER COMPRESSION LOSSES & IMPROVED POWER HANDLING
• FEATURES VPEX PATENT PENDING TECHNOLOGY FOR AN IMPROVED FLATTER FREQUENCY RESPONSE
• EXCLUSIVE ADVANCED HIGH TEMPERATURE POLYMER DIAPHRAGM FOR AN EXTENDED RESPONSE WITH LOW RESONANCE
• COPPER SHORTING RING FOR A MORE FLAT FREQUENCY RESPONSE
• FOR ALL HIGH PERFORMANCE HIGH FREQUENCY APPLICATIONS INCLUDING HOME HI-FI, P.A. SYSTEMS, SOUND REINFORCEMENT, RECORDING STUDIO, ETC.
• AVAILABLE IN 8 OHMS ONLY

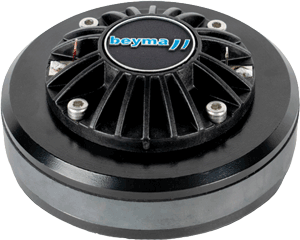

H.F. DRIVER MODEL  - CD-151FE/PK
Specifications
Throat Diameter	1" / 25mm
Impedance	8 ohms
D.C. Resistance	4.5 ohms
AES Power Rating	70 Watts above 1.8kHz
Program Power	140 Watts above 1.8kHz
Sensitivity (1W/1m)	110dB 1w @ 1m w/ TD-164 horn
Frequency Response	900Hz - 20kHz
Recommended Crossover	1.8 kHz or higher
Voice Coil Diameter	1.5" / 38.1mm
Flux Density	1.6T
BL Factor	6 N/A
Exit Angle	12°
Mounting Information
Overall Diameter	4.01" / 102mm
Overall Depth	1.75" / 44.4mm
Mounting
- 3 M-5 threaded holes 120° apart on 2.24" diameter circle
- or 2 M5 threaded holes 180° apart on 3" diameter circle
Net Weight	2.8 lb. / 1.3 kg.
Shipping Weight	3.0 lb. / 1.4 kg.
Materials
Diaphragm	High Temperature Polymer
Voice Coil	Copper Clad Aluminum
Voice Coil Former	Kapton
Shorting Ring	Copper
Magnet	Ferrite

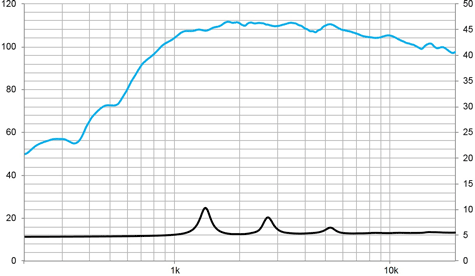

Freq. Response & Impedance Curves(TD-164 Horn): On axis, 1w @ 1m

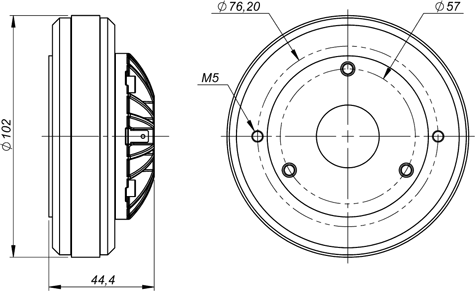

Overall Dimensions
