• NEW NEXT GENERATION HIGH PERFORMANCE BEYMA CD-171FE/PK 1 INCH EXIT HIGH FREQUENCY DRIVER
• HANDLES A POWERFUL 80 WATTS @ 1.4KHZ RMS & 160 WATTS @ 1.4KHZ PROGRAM POWER
• FEATURES DEPLOCEX PATENT PENDING TECHNOLOGY FOR IMPROVED COOLING, HIGH TEMPERATURE POLYMER DIAPHRAGM, LOWER COMPRESSION LOSSES & IMPROVED POWER HANDLING
• HAS AN OVERALL SMOOTH DETAILED SOUND WITH A FORWARD SOUNDING MIDRANGE & FLAT HIGH FREQUENCIES
• COPPER SHORTING RING FOR A MORE FLAT FREQUENCY RESPONSE
• FOR ALL HIGH PERFORMANCE HIGH FREQUENCY APPLICATIONS INCLUDING HOME HI-FI, RECORDING STUDIO, ETC.
• AVAILABLE IN 8 OHMS ONLY

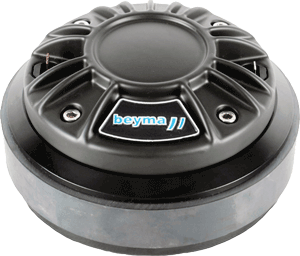

H.F. DRIVER MODEL  - CD-171FE/PK
Specifications
Throat Diameter	1" / 25mm
Impedance	8 ohms
D.C. Resistance	4.1 ohms
AES Power Rating	80 Watts above 1.4kHz
Program Power	160 Watts above 1.4kHz
Sensitivity (1W/1m)	109dB 1w @ 1m w/ TD-164 horn
Frequency Response	800Hz - 20kHz
Recommended Crossover	1.4 kHz or higher
Voice Coil Diameter	1.75" / 44.4mm
Flux Density	1.6T
BL Factor	5.4 N/A
Mounting Information
Overall Diameter	4.72" / 120mm
Overall Depth	2.32" / 59mm
Mounting
- 3 M-5 threaded holes 120° apart on 2.24" diameter circle
- or 2 M5 threaded holes 180° apart on 3" diameter circle
Net Weight	5.0 lb. / 2.3 kg.
Shipping Weight	5.3 lb. / 2.4 kg.
Materials
Diaphragm	High Temperature Polymer
Voice Coil	Copper Clad Aluminum
Voice Coil Former	Kapton
Shorting Ring	Copper
Magnet	Ferrite

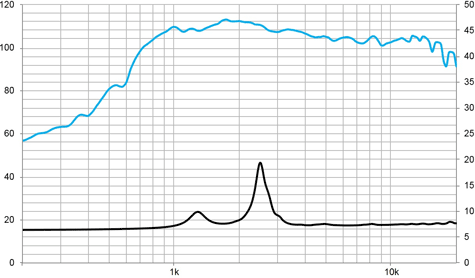

Freq. Response & Impedance Curves(TD-164 Horn): On axis, 1w @ 1m

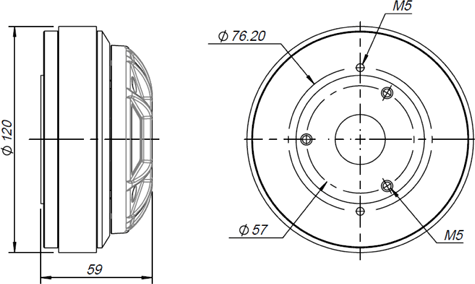

Overall Dimensions
