BEYMA CD1S - 1" SCREW-ON HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD1S - 1" SCREW-ON HIGH FREQUENCY DRIVER |
|
THE BEYMA CD1S IS A 1" SCREW-ON TYPE HIGH FREQUENCY DRIVER THAT HAS NICE EXTENDED HIGHS W/ GOOD MIDS & WEIGHS ONLY 1.3LBS! |
|
|
|
BEYMA CD1S |
|
Item Price: $69.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
| D.C. Resistance | 5.4 ohms |
|
AES
Power Rating |
30 Watts above 2.5kHz |
| Program Power | 60 Watts above 2.5kHz |
| Sensitivity (1W/1m) | 106dB 1w @ 1m w/ TD-2012N horn |
|
Frequency
Response |
2kHz
- 20kHz |
| Recommended Crossover | 2.5 kHz or higher |
| Voice Coil Diameter |
1"
/ 25.4mm |
| Flux Density | 1.5T |
| BL Factor | 4.6 N/A |
|
Mounting Information |
|
| Overall Diameter |
2.87" /
73mm |
|
Overall
Depth |
2.56" / 65mm |
| External Thread Size | 1.375" |
|
Net
Weight |
1.32 lb. / .6 kg. |
| Shipping Weight | 1.54 lb. / .7 kg. |
|
Materials |
|
| Diaphragm | PM4 Polymer |
| Voice Coil | Edgewound Aluminum |
| Magnet | Ferrite |

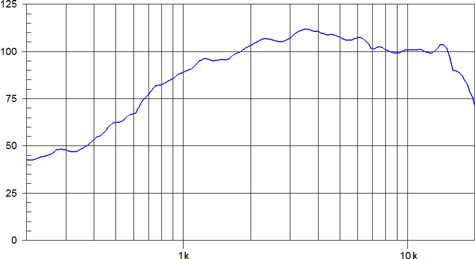

| Freq. Response Graph (TD-2012N Horn): On axis, 1w @ 1m | |
 |
|

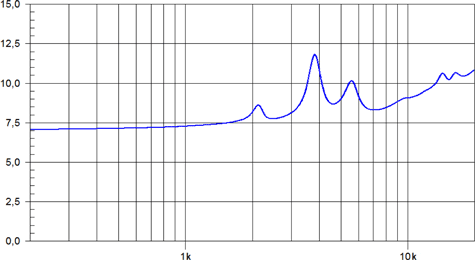

| Impedance Curve | |
 |
|

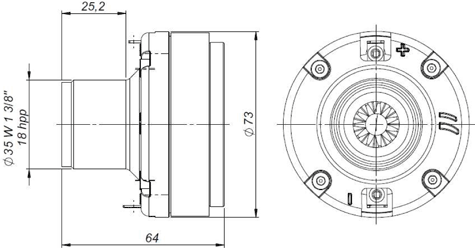

| Overall Dimensions | |
 |
|
