BEYMA CP12N - 1" BULLET TWEETER
|
|
|
BEYMA CP12N - 1" BULLET TWEETER |
|
THE BEYMA CP12N COMPRESSION TWEETER HAS A NICE CRISP YET SMOOTH HIGH FREQUENCY SOUND UP TO 20KHZ! |
|
|
|
BEYMA CP12N |
|
Item Price: $59.99 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
|
|
8 ohms @ 8.0 kHz |
| D.C. Resistance | 5 ohms |
|
AES
Power Rating |
15 Watts |
| Program Power | 30 Watts |
|
Sensitivity
(1W/1m) |
107dB SPL |
|
Frequency
Response |
3kHz
- 20kHz |
| Recommended Crossover | 6.0 kHz @ 12dB/oct. |
| Dispersion (H x V) | 40° |
| Voice Coil Diameter |
1"
/ 25.8mm |
| Magnetic Assembly Weight | 1.54 lb. / .7 kg. |
| Flux Density | 1.4T |
| BL Factor | 4 N/A |
|
Mounting Information |
|
| Overall Diameter |
3.4" x 3.4"
/ 87mm |
| Overall Depth | 2.83" / 72mm |
| Baffle Cutout Dimensions | 2.9" / 74mm |
| Net Weight | 1.65 lb. / .75 kg. |
| Shipping Weight | 1.87 lb. / .85 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Nomex |
| Magnet | Ferrite |
|

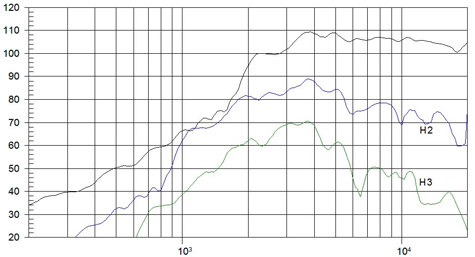

Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
 |
|

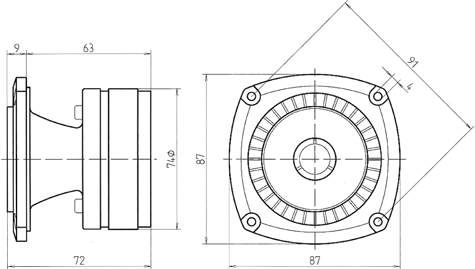

| Dimensional Drawing | |
 |
|
