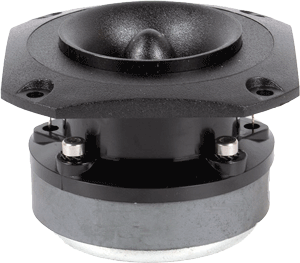

BEYMA CP16 - 1" BULLET TWEETER
|
|
|
BEYMA CP16 - 1" BULLET TWEETER |
|
THE BEYMA CP16 COMPRESSION TWEETER HAS A NICE SMOOTH HIGH FREQUENCY SOUND UP TO 20KHZ! |
|
|
|
BEYMA CP16 |
|
Item Price: $44.25 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
|
|
6.4 ohms |
| D.C. Resistance | 5.4 ohms |
|
AES
Power Rating |
15 Watts above 5kHz |
| Program Power | 30 Watts above 5kHz |
|
Sensitivity
(1W/1m) |
105dB SPL |
|
Frequency
Response |
3kHz
- 20kHz |
| Recommended Crossover | 6.0 kHz @ 12dB/oct. |
| Dispersion (H x V) | 40° |
| Voice Coil Diameter |
1"
/ 25.8mm |
| Magnetic Assembly Weight | 1.54 lb. / .7 kg. |
| Flux Density | 1.45T |
| BL Factor | 4 N/A |
|
Mounting Information |
|
| Overall Diameter |
3.39" x 3.39"
/ 86mm |
| Overall Depth | 3.6" / 92mm |
| Bolt Circle Diameter | 3" / 75mm |
| Baffle Cutout Dimensions | 2.9" / 74mm |
| Net Weight | 1.7 lb. / .75 kg. |
| Shipping Weight | 1.8 lb. / .8 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Nomex |
| Magnet | Ferrite |
|
Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
 |
|

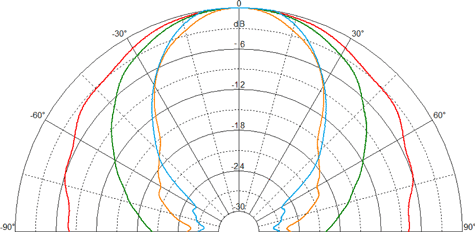

| Polar Pattern | |
 |
|

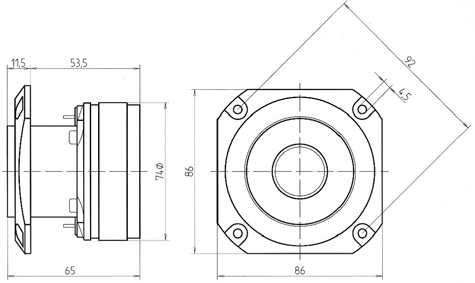

| Dimensional Drawing | |
 |
|
