BEYMA CP21/F - 1" H.F. SLOT TWEETER
|
|
|
BEYMA CP21/F - 1" H.F. SLOT TWEETER |
|
THE BEYMA CP21F SLOT TWEETER HAS A EXTENDED RESPONSE TO 20KHZ WITH EXCELLENT TRANSIENT ATTACK! |
|
|
|
BEYMA CP21/F |
|
Item Price: $129.95 |
|
|
CP21/F-Dia replacement
diaphragm
|
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
|
|
8 ohms @ 9.0 kHz |
| D.C. Resistance | 6.1 ohms |
|
AES
Power Rating |
25 Watts |
| Program Power | 50 Watts |
|
Sensitivity
(1W/1m) |
105dB SPL |
|
Frequency
Response |
3.5kHz
- 20kHz |
| Recommended Crossover | 5.0 kHz or higher |
| Dispersion (H x V) |
140° |
| Voice Coil Diameter |
1.5"
/ 37.6mm |
| Magnetic Assembly Weight | 2.64 lb. / 1.2 kg. |
| Flux Density | 1.55T |
| BL Factor | 5.2 N/A |
|
Mounting Information |
|
| Overall Diameter |
4" x 4"
/ 102mm |
| Overall Depth | 2.83" / 72mm |
| Baffle Cutout Dimensions | 3.62" / 92mm |
| Net Weight | 3.75 lb. / 1.7 kg. |
| Shipping Weight | 3.85 lb. / 1.75 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|

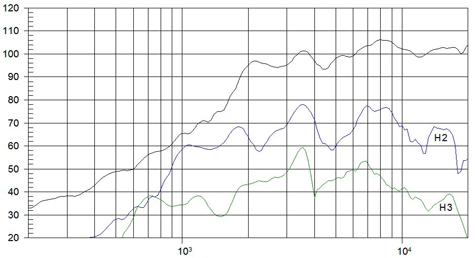

Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
 |
|
| Dimensional Drawing | |
 |
|
