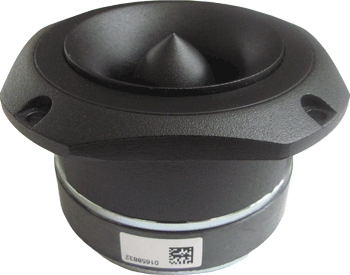

BEYMA CP22FB - 1" H.F. BULLET TWEETER
|
|
|
BEYMA CP22FB - 1" H.F. BULLET TWEETER |
|
BEYMA CP22FB TWEETER HAS VERY SMOOTH 'SOFT SOUNDING' HIGHS IN AN ATTRACTIVE BLACK MATTE FINISH! |
|
|
|
BEYMA CP22FB |
|
Item Price: $139.95 |
|
|
CP22-Dia replacement
diaphragm
|
|
|
H.F. DRIVER MODEL |
|
|
Specifications |
|
|
Impedance |
8
ohms |
|
|
8 ohms @ 10 kHz |
| D.C. Resistance | 6.3 ohms |
|
AES
Power Rating |
35 Watts |
| Program Power | 70 Watts |
|
Sensitivity
(1W/1m) |
107dB SPL |
|
Frequency
Response |
5kHz - 20kHz |
| Recommended Crossover | 5.0 kHz or higher |
| Dispersion (H x V) |
40° |
| Voice Coil Diameter |
1.5"
/ 38.1mm |
| Flux Density | 1.55T |
| BL Factor | 5.2 N/A |
|
Mounting Information |
|
| Overall Diameter |
4" x 4"
/ 102mm |
| Overall Depth | 2.79" / 71mm |
| Baffle Cutout Dimensions | 3.62" / 92mm |
| Bolt Circle Diameter | 4.21" / 107mm |
| Net Weight | 3.5 lb. / 1.6 kg. |
| Shipping Weight | 3.75 lb. / 1.7 kg. |
|
Materials |
|
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Cooling | Ferro Fluid |
| Finish | Powder Coated Black Matte |
| Magnet | Ferrite |
|

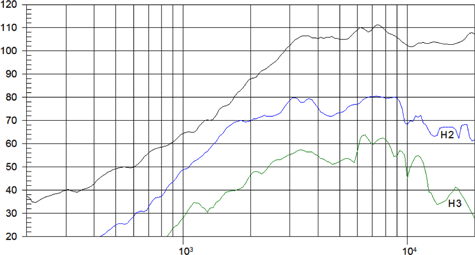

Freq. Response & Distortion Curves, MAGNITUDE: On axis, 1w @ 1m |
|
 |
|

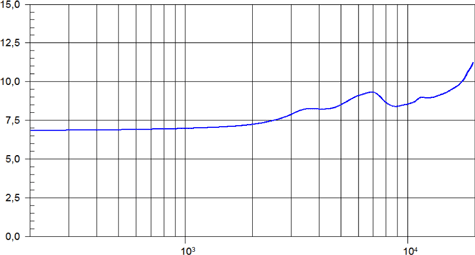

| Impedance Curve | |
 |
|

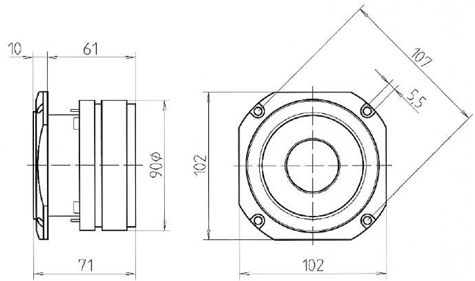

| Dimensional Drawing | |
 |
|
