BEYMA CP350/Ti - 1" PRO HIGH FREQ. DRIVER
|
|
|
BEYMA CP350/Ti - 1" PRO HIGH FREQ. DRIVER |
|
DELIVERS A VERY SMOOTH SOUND WITH VERY LOW DISTORTION! |
|
|
|
BEYMA CP350/Ti |
|
NO LONGER AVAILABLE GOOD REPLACEMENT IS BEYMA CD10FE |
|
|
VERY LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
|
5.0 ohms @ 5.0 kHz |
| D.C. Resistance | 6.8 ohms |
|
AES
Power Rating |
70 Watts above 1.5kHz |
| Program Power | 140 Watts above 1.5kHz |
| Sensitivity (1W/1m) | 104dB 1w @ 1m w/ TD-250 horn |
| Frequency Response | 800Hz - 20kHz |
| Recommended Crossover | 1.0 kHz or higher |
| Voice Coil Diameter | 1.75" / 44.4mm |
| Magnetic Assembly Weight | 6.7 lb. / 3.06 kg. |
| Flux Density | 1.9T |
| BL Factor | 9.6 N/A |
|
Mounting Information |
|
|
Overall Diameter |
5.5" / 140mm |
| Overall Depth | 2.55" / 65mm |
| Mounting | |
| - 3 M-5 threaded holes 120° apart on 2.24" diameter circle | |
| - or 2 M5 threaded holes 180° apart on 3" diameter circle | |
| - mounting hardware is supplied | |
| Net Weight | 7.2 lb. / 3.28 kg. |
| Shipping Weight | 7.48 lb. / 3.4 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
|

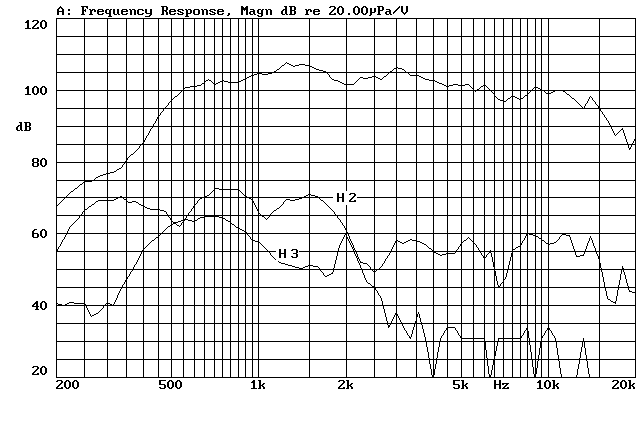

Freq. Response & Distortion Curves(TD-250 Horn): On axis, 1w @ 1m |
|
|
|
|
|
Dimensional Drawing |
|
|
|
|
