BEYMA CP385/ND - 1" PRO NEO H.F. DRIVER
|
|
|
BEYMA CP385/ND - 1" PRO NEO H.F. DRIVER |
|
SMOOTH SOUNDING W/ VERY LOW DISTORTION & WEIGHS UNDER 3LBS! |
|
|
|
BEYMA CP385/ND |
|
Item Price: $219.95 |
|
Beyma CP385Nd-Dia - Replacement
Diaphragm
Item Price:
$109.00 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
|
5.2 ohms @ 4.5 khz |
| D.C. Resistance | 4.7 ohms |
|
AES
Power Rating |
70 Watts above 1.5kHz |
| Program Power | 140 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
107dB 1w @ 1m w/ TD-250 horn |
|
Frequency
Response |
800Hz
- 20kHz |
| Recommended Crossover | 1.2 kHz or higher |
| Voice Coil Diameter |
1.75"
/ 44.4mm |
| Magnetic Assembly Weight | 2.42 lb. / 1.1 kg. |
| Flux Density | 2.2T |
| BL Factor | 7.5 N/A |
| Exit Angle | 16.3° |
|
Mounting Information |
|
| Overall Diameter |
3.94" / 100mm |
|
Overall
Depth |
3.01" / 76.5mm |
| Mounting | |
| - 3 M-5 threaded holes 120° apart on 2.24" diameter circle | |
| - or 2 M5 threaded holes 180° apart on 3" diameter circle | |
|
Net
Weight |
2.86 lb. / 1.3 kg. |
| Shipping Weight | 3.3 lb. / 1.5 kg. |
|
Materials |
|
| Diaphragm | Polyester |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

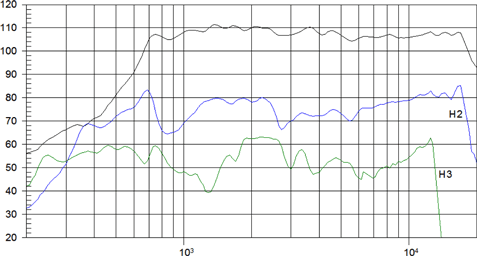

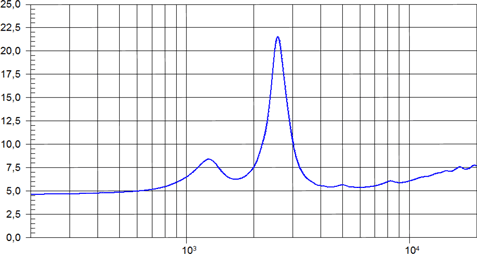

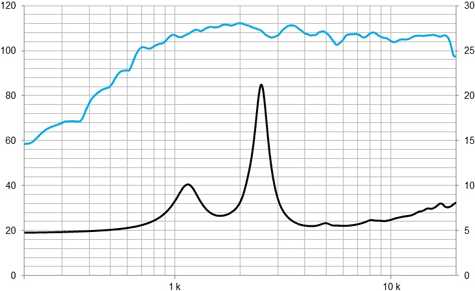

| Freq. Response & Impedance Curves(TD-194 Horn): On axis, 1w @ 1m | |
 |
|

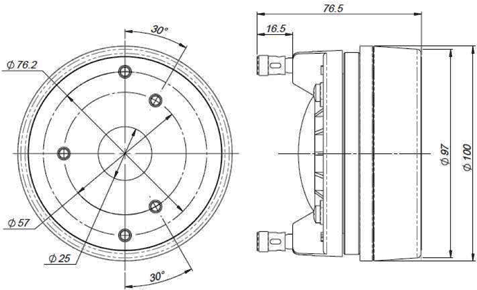

| Dimensions | |
 |
|
