BEYMA CP755/Ti - 1.4" PRO HF DRIVER
|
|
|
BEYMA CP755/Ti - 1.4" PRO HF DRIVER |
|
THIS 1.4" HIGH POWERED HF DRIVER HAS A FLAT RESPONSE W/ SUPERB CLARITY & PROJECTION! |
|
|
|
BEYMA CP755/Ti |
|
Item Price: $252.75 |
|
|
H.F. DRIVER MODEL - CP755/Ti |
|
|
Specifications |
|
|
Throat Diameter |
1.4" / 36mm |
|
Impedance |
8 ohms |
|
Minimum Impedance |
7.3 ohms @ 3.5 khz |
| D.C. Resistance | 5.5 ohms |
| AES Power Rating | 90 Watts above 1.5kHz |
| Program Power | 180 Watts above 1.5kHz |
| Sensitivity (1W/1m) | 110dB 1w@1m w/TD-565 horn |
|
Frequency Response |
600Hz - 20kHz |
| Recommended Crossover | 800 Hz or > @ 12dB/octave |
| Voice Coil Diameter | 2.87" / 72.2mm |
| Magnetic Assembly Weight | 14.33 lb. / 6.5 kg. |
| Flux Density | 1.875T |
| BL Factor | 10 N/A |
| Exit Angle | 8° |
|
Mounting Information |
|
| Overall Diameter | 7.56" / 192mm |
| Overall Depth | 3.07" / 78mm |
| Mounting | |
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| - mounting hardware is supplied | |
| Net Weight | 14.85 lb. / 6.75 kg. |
| Shipping Weight | 15.4 lb. / 7 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Ferrite |
| FREQUENCY RESPONSE & DISTORTION CURVES W/ TD-565 | |
|
|
|
|

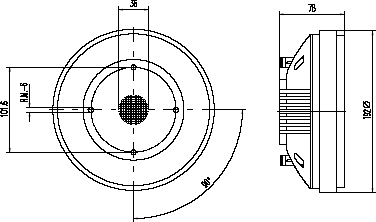

MOUNTING INFORMATION |
|
 |
|
