BEYMA CP755/ND - 1.4" PRO HF DRIVER
|
|
|
BEYMA CP755/ND - 1.4" PRO HF DRIVER |
|
LIGHTWEIGHT 1.4" HF DRIVER HAS A VERY SMOOTH DETAILED SOUND! |
|
|
|
BEYMA CP755/ND |
|
Item Price: $409.95 |
|
|
H.F. DRIVER MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
7.4 ohms @ 1.5 khz |
| D.C. Resistance | 5.5 ohms |
|
AES
Power Rating |
90 Watts above 1.5kHz |
| Program Power | 180 Watts above 1.5kHz |
|
Sensitivity
(1W/1m) |
112dB 1w@1m w/TD-565 horn |
|
Frequency
Response |
600Hz
- 20kHz |
| Recommended Crossover | 800 Hz or > @ 12dB/octave |
| Voice Coil Diameter |
2.87" / 72.2mm |
| Magnetic Assembly Weight | 5.94 lb. / 2.7 kg. |
| Flux Density | 2.2T |
| BL Factor | 11.5 N/A |
| Exit Angle | 12.6° |
|
Mounting Information |
|
|
Overall Diameter |
5.7" / 145mm |
|
Overall
Depth |
2.56" / 65mm |
| Mounting | |
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| - mounting hardware is supplied | |
|
Net
Weight |
6.51 lb. / 2.96 kg. |
| Shipping Weight | 7.06 lb. / 3.21 kg. |
|
Materials |
|
| Diaphragm | Pure Titanium |
| Surround | Mylar |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|

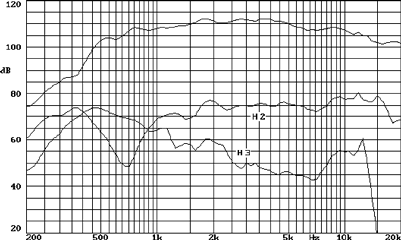

Frequency Response & Distortion Curves w/ TD-565 |
|
 |
|
|
Mounting Information |
|
|
|
|
