BEYMA CP800/Ti - 2" PRO HIGH FREQ. DRIVER
|
|
|
BEYMA CP800/Ti - 2" PRO HIGH FREQ. DRIVER |
|
THIS POWERFUL BEYMA 2" HF DRIVER HAS SUPERB CLARITY! |
|
|
|
8 Ohm Version
Item Price: $391.95 New Low Price |
|
16 Ohm Version
Item Price: $391.95 New Low Price |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
|
7.5 ohms @ 1.5 khz |
| D.C. Resistance | 5.6 ohms |
|
AES
Power Rating |
|
| - above 500Hz | 100 Watts |
| - above 1.2kHz | 150 Watts |
| Program Power | |
| - above 500Hz | 200 Watts |
| - above 1.2kHz | 300 Watts |
|
Sensitivity
(1W/1m) |
112dB 1w @ 1m w/ TD-460 horn |
|
Frequency
Response |
500Hz
- 20kHz |
| Recommended Crossover | 500 Hz or higher, 12dB/octave |
| Voice Coil Diameter |
4" / 100mm |
| Magnetic Assembly Weight | 19.6 lb. / 8.9 kg. |
| Flux Density | 1.75T |
| BL Factor | 15 N/A |
|
Mounting Information |
|
|
Overall Diameter |
9"
/ 239mm |
|
Overall
Depth |
4.6"
/ 117mm |
|
Mounting |
|
| - 4 M6 threaded holes 90° apart on 4" diameter circle | |
| - mounting hardware is supplied | |
|
Net
Weight |
22.7 lb. / 10.3 kg. |
|
Shipping Weight |
22.4 lb. / 11.0 kg. |
|
Materials |
|
|
Diaphragm |
Pure Titanium |
|
Voice Coil |
Edgewound Aluminum Ribbon |
|
Voice Coil Former |
Kapton |
| Magnet | Ferrite |
|

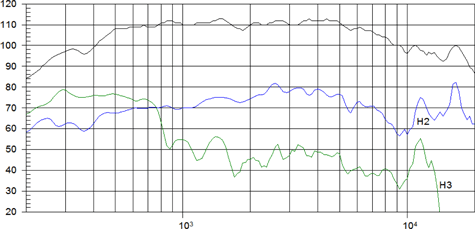

FREQUENCY RESPONSE & DISTORTION CURVES W/ TD-460 |
|
|
|

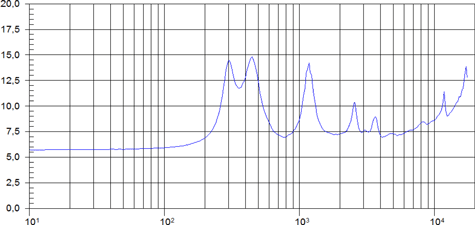

IMPEDANCE CURVE |
|
|
|

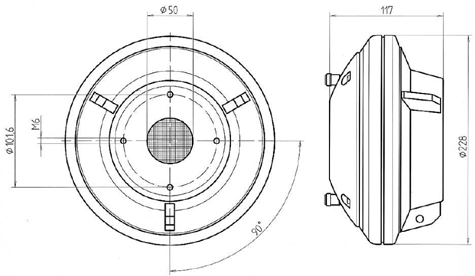

MOUNTING INFORMATION |
|
|
