BEYMA POWER 10iX - 10" LOW FREQUENCY SPEAKER
|
|
|
BEYMA POWER 10iX - 10" LOW FREQUENCY SPEAKER |
|
THE BEYMA POWER 10iX HAS A 13.0MM XMAX W/ 500 WATTS AES POWER HANDLING! |
|
|
|
4 Ohms
Item Price: $379.95 |
|
8 Ohms
Item Price: $379.95 |
|
|
WOOFER MODEL |
POWER 10iX |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
40Hz
- 3.3kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
3" /
76.2mm |
| Voice Coil Length | 30 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 49 mm |
| BL Factor | 19 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.3" / 261mm |
|
Bolt
Circle Diameter |
9.6"
/ 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9" / 228mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5.2"
/ 133mm |
|
Net
Weight |
16 lb. / 6.8 kg. |
| Shipping Weight | 18.3 lb. / 7.25 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Surround Shape | 3 Roll |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 41 Hz |
| Impedance (Re) | 6.8 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.1 |
| Electrical Factor (Qes) | .46 |
| Total Q (Qts) | .43 |
| Comp. Equivelant Vol. (Vas) | 1.15 ft3 / 32.5 Liters |
| Voice Coil Overhang (Xmax) | 13.0 mm |
| Moving Mass (Mms) | 95 Grams |
| Surface Area of Cone (Sd)m2 | 0.038 |
| Reference Efficiency | .5% |
| Displacement Volume (Vd) | 505 cm3 |

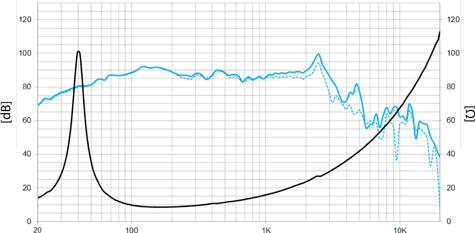

| Frequency Response & Distortion Curves | |
 |
|
|

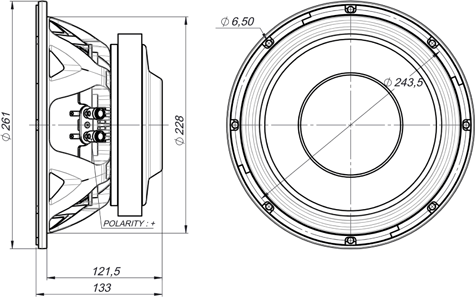

Mounting Dimensions |
|
 |
|
