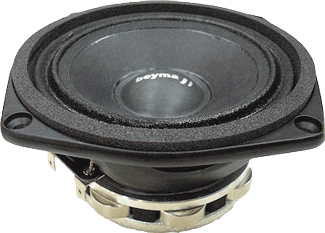

BEYMA PRO5WNd - NEODYMIUM 5" MID-BASS / MIDRANGE SPEAKER
|
|
|
BEYMA PRO5WNd - NEODYMIUM 5" MID-BASS / MIDRANGE SPEAKER |
|
THE BEYMA PRO5WNd DELIVERS A SMOOTH MID-BASS SOUND WITH GOOD POWER HANDLING OF 340 WATTS PROGRAM! |
|
|
|
BEYMA Pro5WNd |
|
Item Price: $209.95/Each |
|
|
WOOFER MODEL - Pro5WNd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
5" / 125mm |
|
Impedance |
4 ohms |
|
AES Power Rating |
100 Watts |
| Program Power | 200 Watts |
|
Frequency Response |
90Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
95dB |
|
Voice Coil Diameter |
1.5" / 38.5mm |
| Voice Coil Length | 6mm |
| Air Gap Height | 6mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 8.1 N/A |
| Magnetic Assembly Weight | 2.64 lb. / 1.2 kg. |
| Mounting Information | |
| Overall Diameter | 6.4" / 155mm |
| Bolt Circle Diameter | 5.57" / 114.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 4.72" / 120mm |
| - Rear Mount | 4.72" / 120mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.019 ft3 / .5 Liters |
| Overall Depth | 2.89" / 73.5mm |
| Net Weight | 2.86 lb. / 1.3 kg. |
| Shipping Weight | 3.96 lb. / 1.8 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Treated Paper |
| Surround | Treated Cloth |
| Voice Coil | Aluminum |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 138 Hz |
| Impedance (Re) | 3.9 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 5.76 |
| Electrical Factor (Qes) | .41 |
| Total Q (Qts) | .38 |
| Comp. Equivalent Vol. (Vas) | .059 ft3 / 1.68Liters |
| Voice Coil Overhang (Xmax) | 2.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0085m2 |
| Moving Mass (Mms) | 7 Grams |
| Reference Efficiency | 1.05% |
| Displacement Volume | 17 cm3 |
|

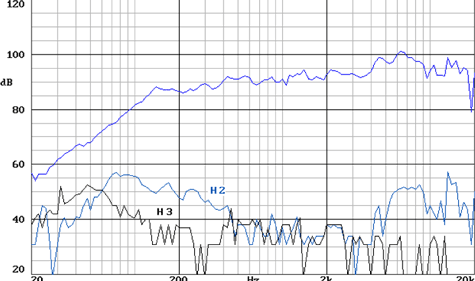

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|

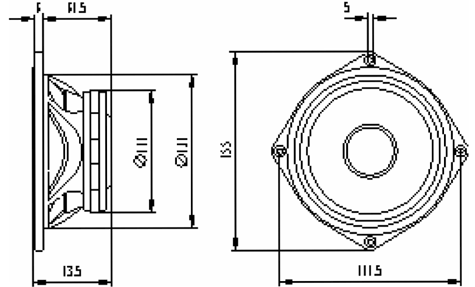

MOUNTING INFORMATION |
|
 |
|
