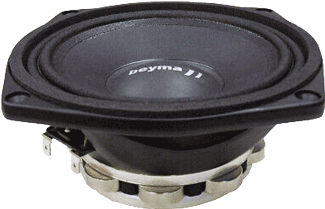

BEYMA PRO6WNd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER
|
|
|
BEYMA PRO6WNd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER |
|
THE BEYMA PRO6WNd DELIVERS A SMOOTH MID-BASS SOUND WITH GOOD POWER HANDLING OF 340 WATTS PROGRAM! |
|
|
|
BEYMA Pro6WNd |
|
Item Price: $229.95
|
|
|
WOOFER MODEL - Pro6WNd |
|
|
Specifications |
|
|
Nominal Basket Diameter |
6.5" / 165mm |
|
Impedance |
4 ohms |
|
AES Power Rating |
150 Watts |
| Program Power | 300 Watts |
|
Frequency Response |
70Hz - 9.0KHz |
|
Sensitivity (1W/1m) |
97dB |
|
Voice Coil Diameter |
2" / 51.7mm |
| Voice Coil Length | 9mm |
| Air Gap Height | 7mm |
| X Damage (peak to peak) | 20mm |
| Bl Factor (BL) | 11 N/A |
| Magnetic Assembly Weight | 3.3 lb. / 1.5 kg. |
| Mounting Information | |
| Overall Diameter | 7.38" / 187.5mm |
| Bolt Circle Diameter | 6.77" / 172mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 5.74" / 146mm |
| - Rear Mount | 5.74" / 146mm |
| No. Of Mounting Holes | 4 |
| Volume Displaced By Driver | 0.02 ft3 / .55 Liters |
| Overall Depth | 2.97" / 75.5mm |
| Net Weight | 3.74 lb. / 1.7 kg. |
| Shipping Weight | 5.06 lb. / 2.3 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Aluminum |
| Former | Fiberglass |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 92 Hz |
| Impedance (Re) | 3.9 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 6.52 |
| Electrical Factor (Qes) | .27 |
| Total Q (Qts) | .26 |
| Comp. Equivalent Vol. (Vas) | .203 ft3 / 5.75Liters |
| Voice Coil Overhang (Xmax) | 3.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0135m2 |
| Moving Mass (Mms) | 14 Grams |
| Reference Efficiency | 1.4% |
| Displacement Volume | 42 cm3 |
|

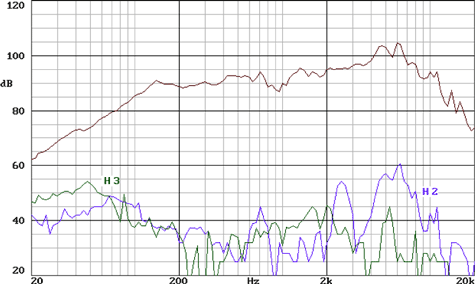

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
|

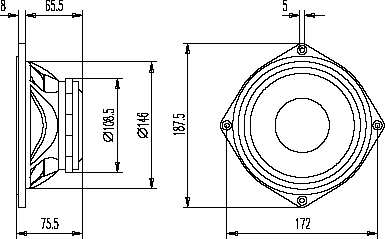

MOUNTING INFORMATION |
|
 |
|
